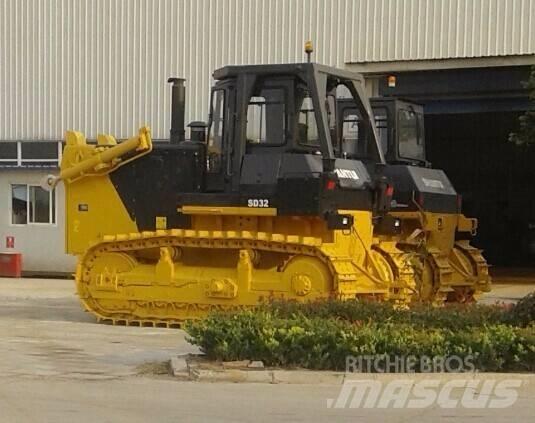

Shantui SD32R

Technical Features ● It’s applicable for the landfill, leveling, compacting, and stacking operations in waste yards as well as the traction of steel garbage chute and treatment tank station. ● The high capacity sanitation blade and mud scraper are equipped to effectively improve the working efficiency. The unique heightened part on the top of the blade can prevent the ingress of handled material into rear side of blade. ● The special equipment, including high-mount warning lamp, reversing alarm, camera, and LCD display, are equipped to remarkably improve the operation safety in the working sites. ●he central lubrication, central pressure measurement, and automatic track tension systems are equipped to ease the site checking and maintenance of the equipment. Performance Parameters Length × width × height (mm) (excluding ripper) 6880×4500×3640 Operating weight(t) (excluding ripper) 37.7 Engine model NTA855-C360S10 Net power/rated speed (kW/rpm) 235/2000 Ground pressure(Mpa) 0.088 (660mm tracks) Blade type Sanitation blade Blade capacity(m3) 20 Applicable Working Conditions Landfill, leveling, semi-compacting, and stacking operations.
