Data ostatniej kontroli
yes
Typ lemiesza
Lemiesz prosty
Typ kabiny
Zamknięta kabina
Silnik
Shangchai SC8D143G2B1
Moc silnika
94,2 kW (128 KM)
Szerokość gąsiennic
460 mm
Wymiary transportowe (DxSxW)
4500 x 3200 x 3000 mm
Stan techniczny/Gwarancja
ISO9001
Pozostało ogumienia przedniego
100
Wyposażony dla
propertynames.pp_equippedfor_2100012
Warunki dostawy
FOB, CFR, CIF, EXW
Dodatkowe informacje

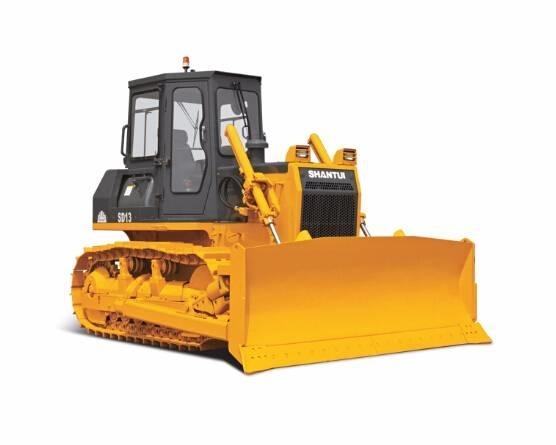

Technical Features
● The turbocharged engine features strong power, high efficiency and energy-saving, and high torque reserve efficiency.
● The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure features reliable and stable power transmission, high durability, and high operating effic
● The high-efficiency radiator can help the normal running of machine under high temperature environment and ease the daily maintenances.
● The valves and pumps are reasonably arranged to ease the repairs and maintenances. The multi-stage filtration system is adopted to effectively guarantee the oil cleanliness and reduce the malfunction rate of hydraulic system.
● The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.
● The electric system features stable and reliable working. All instruments are controlled by microcomputer, featuring vivid and distinct display and accurate and convenient readings.
● The rigid traveling system effectively improves the stability of machine under complicated working conditions.
● The comfortable and convenient operating console, light controls, and adjustable seat and armrests provide the operation personnel with comfortable operating experiences.
● The working device features high stiffness and reliability and good fatigue resistance and can adapt to the demands of severe working conditions.
● The standard straight tilting blade features strong cutting force to handle all kinds of severe working faces and the outstanding durability of blade is guaranteed by the application of high strength structure and high performance materials.
Performance Parameters
Length × width × height (mm) (excluding ripper) 4492×3185×2950 Operating weight(t) (excluding ripper) 13.7
Engine model SC8D143G2B1 Net power/rated speed (kW/rpm) 95.5/1900
Ground pressure(Mpa) 0.063 Blade type Straight tilting blade
Blade capacity(m3) 3.158 for straight tilting blade 2.33 for angle blade
Applicable Working Conditions
Earthworks.Pokaż więcej
