INFO

Grupa produktów
Minikoparki
Marka / model

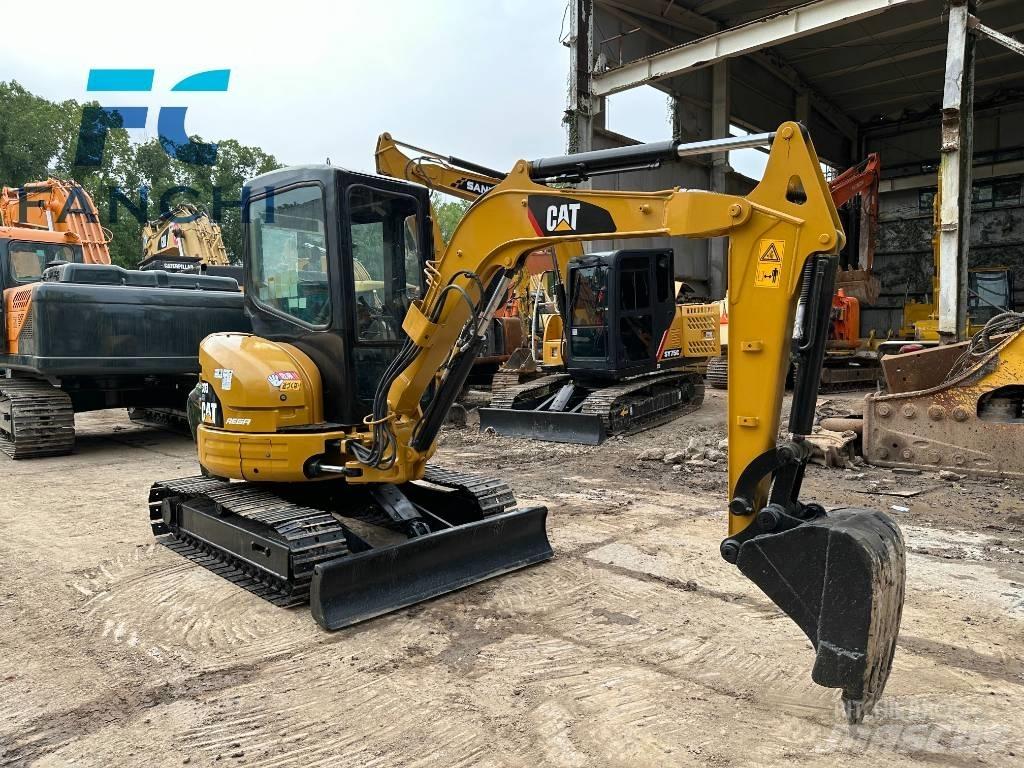

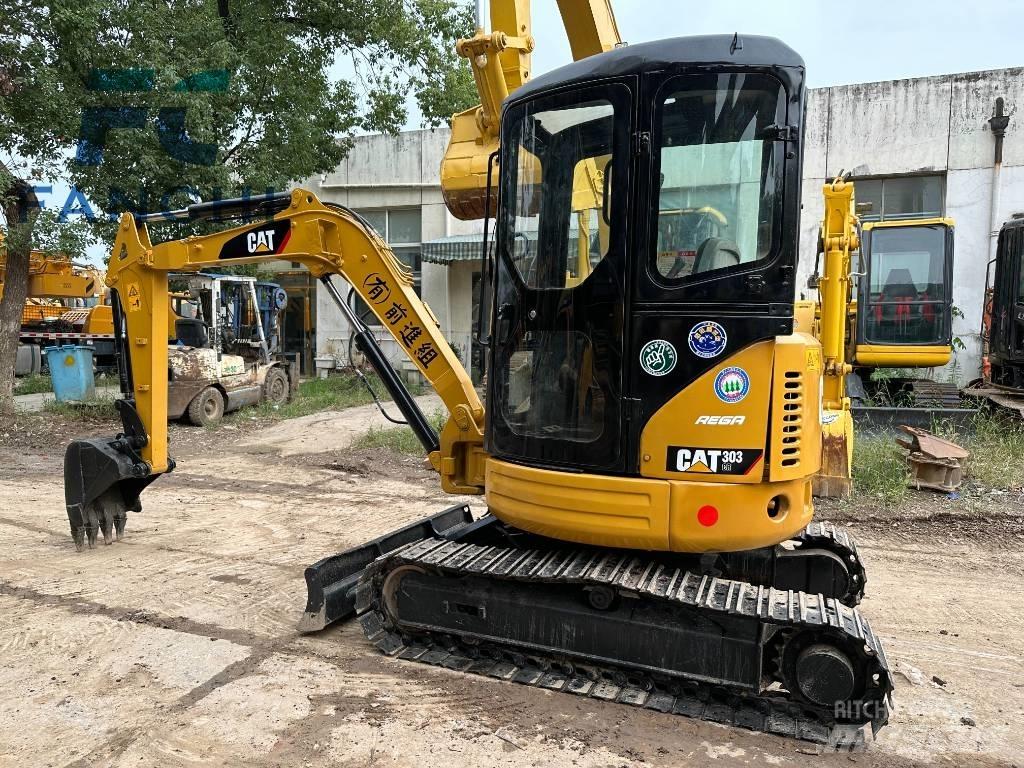

CAT 303 CR
Rok produkcji
2023
Przebieg/godziny
400 h
Stan
Wyremontowane
Kraj
Chiny
Ocena ogólna
1
2
3
4
5
Mascus ID
A2D0DB59

CENA

Wybierz walutę

DANE SZCZEGÓŁÓWE

Napęd
Diesel
Liczba poprzednich właścicieli
1
Stan układu jezdnego
good
Masa całkowita
3 548 kg
Wydajność pomp hydraulicznych
66 l/min
Klasa emisji
Stage V / Tier IV Final
Szerokość gąsiennic
300 mm
Pojemność łyżki
0,12 m3
Wymiary transportowe (DxSxW)
473017802.5 m
Kolor oryginalny
YELLOW

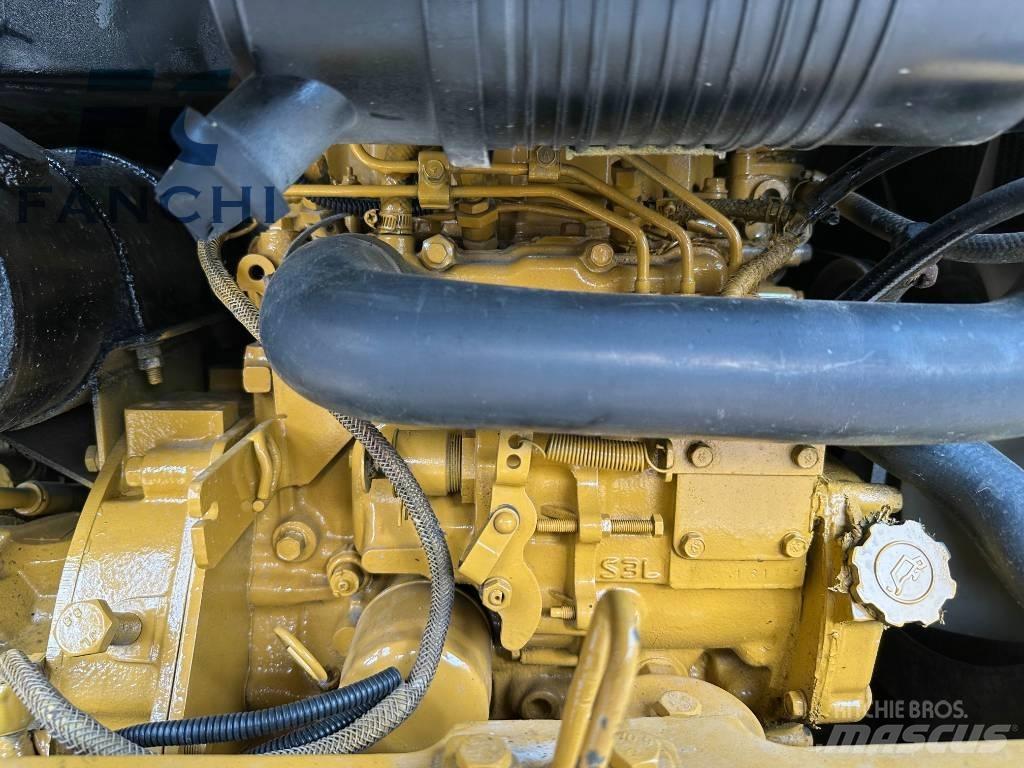

Silnik
Cat C1.8
Moc silnika
23,6 kW (32,1 KM)
Producent silnika.
japan
Marka opon
original
Stan techniczny/Gwarancja
good
Kraj produkcji
Japonia
Warunki dostawy
FOB, CIF, EXW
Certyfikaty
EPA, CE, ANSI, AS, CSA, EAC GOST, TRUA, JIS, TÜV, ASME
Dodatkowe wyposażenie
All the auxiliary accessories can be provided for you. The above information is for reference only, and the specific details need to be confirmed with the factory.
Akcesoria
Ręczne/mechaniczne szybkozłącze
hydraulika do mlota/nozyc
Klimatyzacja
Diesel heater
Pokaż więcej
Dodatkowe informacje
The following are some parameters of the Caterpillar CAT303.5CR excavator: - **Overall Dimensions of the Machine** - Total transportation length: 4730mm, total transportation width: 1780mm, total transportation height: 2500mm. - Track shoe width: 300mm, track ground contact length: 2220mm. - Rear swing radius: 890mm. - **Operating Weight and Capacity** - The operating weight of the whole machine is approximately 3548 - 3770kg. - Bucket capacity: 0.12m³. - Fuel tank capacity: 46L, hydraulic oil tank capacity: 42.3L, engine oil change volume: 7L, coolant volume: 5.5L. - **Performance Parameters** - Engine model: Cat C1.8, rated power: 23.6kW. - Travel speed (high/low): 4.6/2.6 km/h, swing speed: 9rpm. - Bucket digging force: 33kN, stick digging force: 18.9kN. - Maximum drawbar pull: 31kN. - **Working Range** - Maximum digging radius: 5200mm, maximum digging radius at the ground level: 5060mm. - Maximum digging depth: 2880mm, maximum vertical digging depth: 2320mm. - Maximum digging height: 5030mm, maximum unloading height: 3640mm.Pokaż więcej

Shanghai FanChi Machinery trading Co., LTD

hongmei Road 200000 Minhang Shanghai 上海 Chiny
