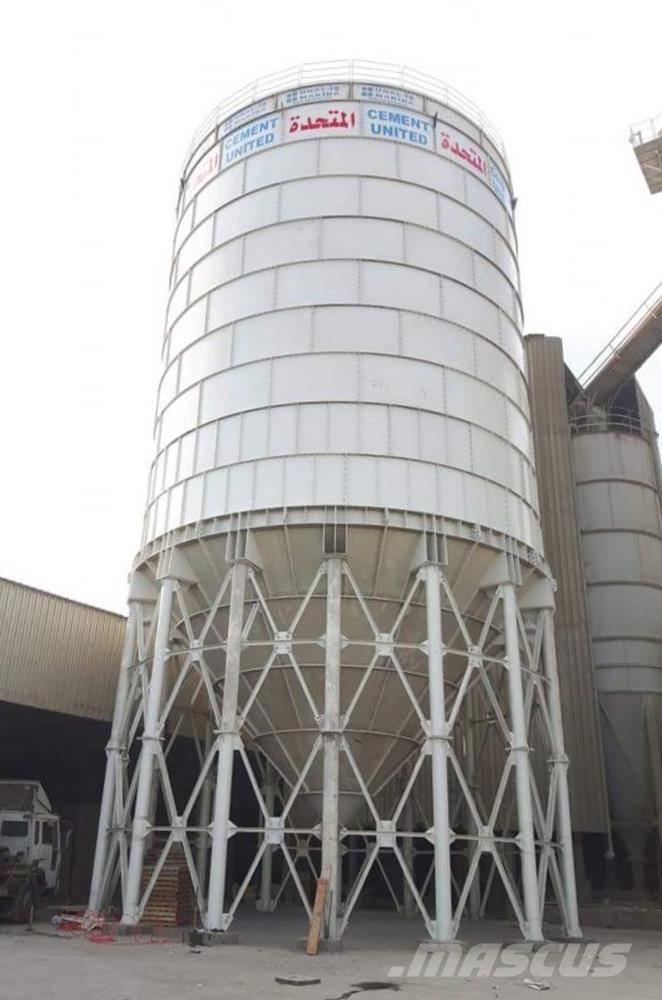

Constmach 3000 Tonne Capacity Cement Silo

Cena bez VAT

Cena do uzgodnienia

Compnay LOGO
Images6Videos1
Constmach 3000 Tonne Capacity Cement Silo Akcesoria
Constmach 3000 Tonne Capacity Cement Silo Akcesoria
FavoriteUlubione
shareUdostępnij
Save searchZapisz wyniki wyszukiwania
Drukuj

INFO

Grupa produktów
Akcesoria
Marka / model
Constmach 3000 Tonne Capacity Cement Silo
Rok produkcji
2024
Stan
Nowy / nieużywany
Kraj
Turcja
Ocena ogólna
1
2
3
4
5
Mascus ID
8ADF4ED8

DANE SZCZEGÓŁÓWE

Stan techniczny/Gwarancja
2 Years
Kraj produkcji
Turcja
Warunki dostawy
CPT, CIP, CIF
Certyfikaty
CE
Dodatkowe informacje

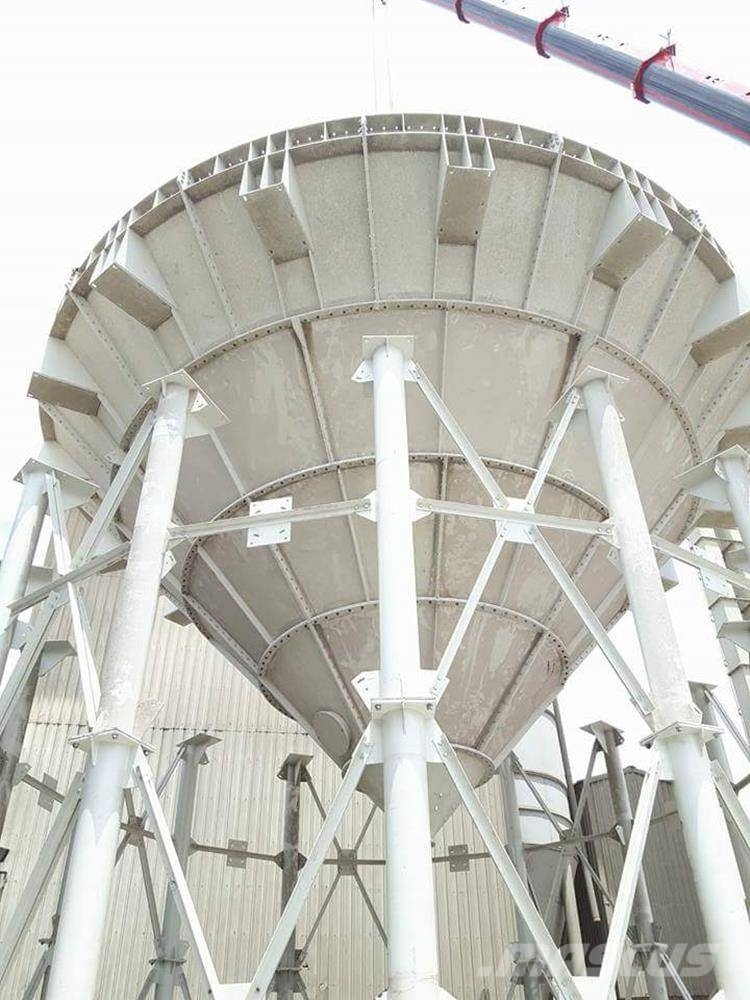

You can call us 24/7 for 3000 Ton Cement Silo for Sale Our CS-3000 model cement silo is a perfect solution to optimize your business processes with its high capacity and superior performance features. This silo, which you can use uninterruptedly even in large-scale projects with its 3000 tons capacity, offers long-lasting use with its reliable and durable structure. Standing out with its height of 29,000 mm and width of 12,400 mm, CS-3000 guarantees strength and durability with its weight of 135,000 kg. Silo legs made of Ø 323 x 12 mm steel pipe material and foot bars made of NPL 80mm steel profile maximize structure safety and stability. The quality of the building components has been increased with 20-25 mm sheet metal bases and 10 mm sheet metal conical parts. The silo is equipped with an outer deck ladder, starting from the base and ending at the top cover, and protection rails around the top cover. This design provides ease of use and security. It also features a 4'' fill tube and extendable extension to the base leg, increasing operational flexibility. The silo is painted with 1 layer of anticorrosive paint and 2 layers of topcoat epoxy paint, and the total paint thickness is designed to be 140 microns. This coating ensures the silo's long-term durability against external factors. Our CS-3000 model cement silo offers a safe and efficient solution with its meticulously calculated and approved designs. It is an ideal choice to make a difference in your projects with its high capacity and durable structure. CS-3000 - 3000 Ton Cement Silo Technical Specifications Silo Capacity 3,000 tons Silo Height 29,000 mm Silo Width Ø 12.400 mm Number of Bases 16 Silo Output Ø 400 mm Silo Weight 135,000 kg Silo Foot Material Ø 323 x 12 mm steel pipe Manufactured as Foot Bar NPL 80mm steel profile Foot Soles Made of 20-25 mm metal sheet Made from Conical Piece 10 mm sheet metal Made from Main Body 10-8-6 mm sheet metal Top Cover Made of Strip 6 mm sheet metal The silo includes an external deck ladder that starts from the base and ends at the top cover There are Protection Rails Around the Silo Top Cover The filling pipe is 4'' and has an extendable extension on the base leg. All Required Statistics for Silos are Calculated and Produced According to Approved Designs Painting 1 layer of anticorrosive paint, 2 layers of topcoat epoxy paint, total paint thickness 140 microPokaż więcej

CONSTMACH MAKİNA İTHALAT İHRACAT LTD.ŞTİ.

Halilbeyli Bayosb Anadolu Cad. No:1 Bağyurdu Organize Sanayi Bölgesi 35743 Kemalpaşa IZMIR Turcja
