Constmach 300 Ton Capacity Cement Silo

Cena bez VAT

Cena do uzgodnienia

Compnay LOGO
Images4Videos1
Constmach 300 Ton Capacity Cement Silo Akcesoria
Constmach 300 Ton Capacity Cement Silo Akcesoria
FavoriteUlubione
shareUdostępnij
Save searchZapisz wyniki wyszukiwania
Drukuj

INFO

Grupa produktów
Akcesoria
Marka / model
Constmach 300 Ton Capacity Cement Silo
Rok produkcji
2024
Stan
Nowy / nieużywany
Kraj
Turcja
Ocena ogólna
1
2
3
4
5
Mascus ID
2D0DE41E

DANE SZCZEGÓŁÓWE

Stan techniczny/Gwarancja
2 Years
Kraj produkcji
Turcja
Warunki dostawy
CPT, CIP, CIF
Certyfikaty
CE
Dodatkowe informacje

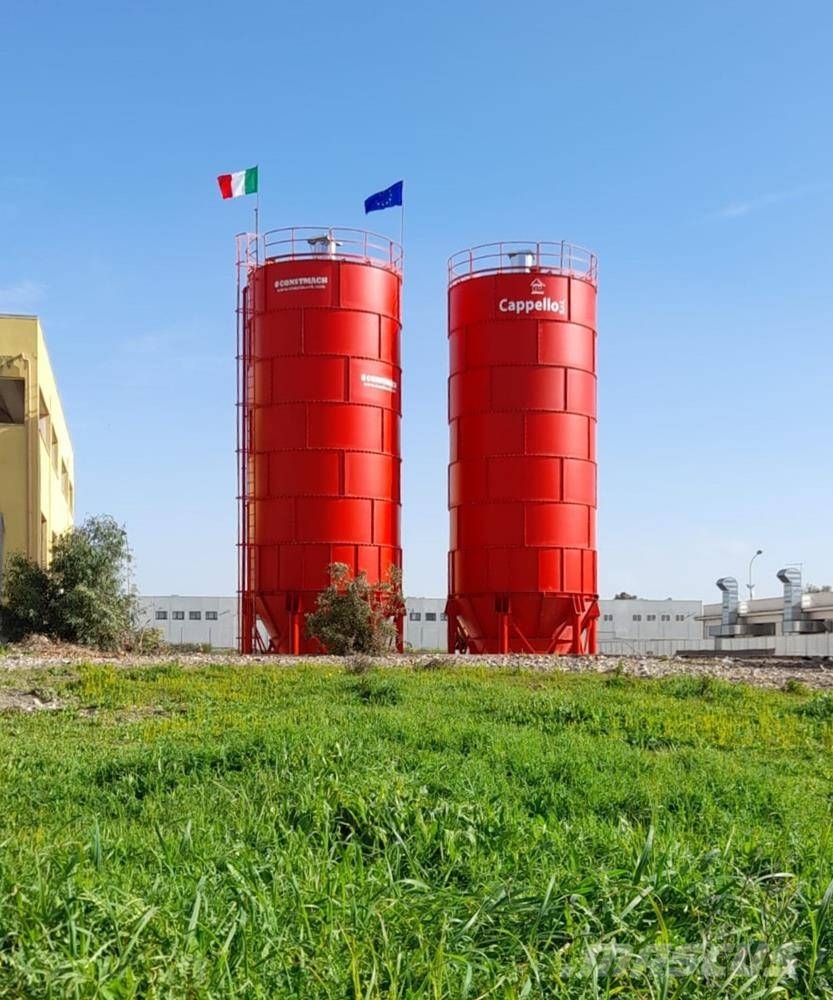

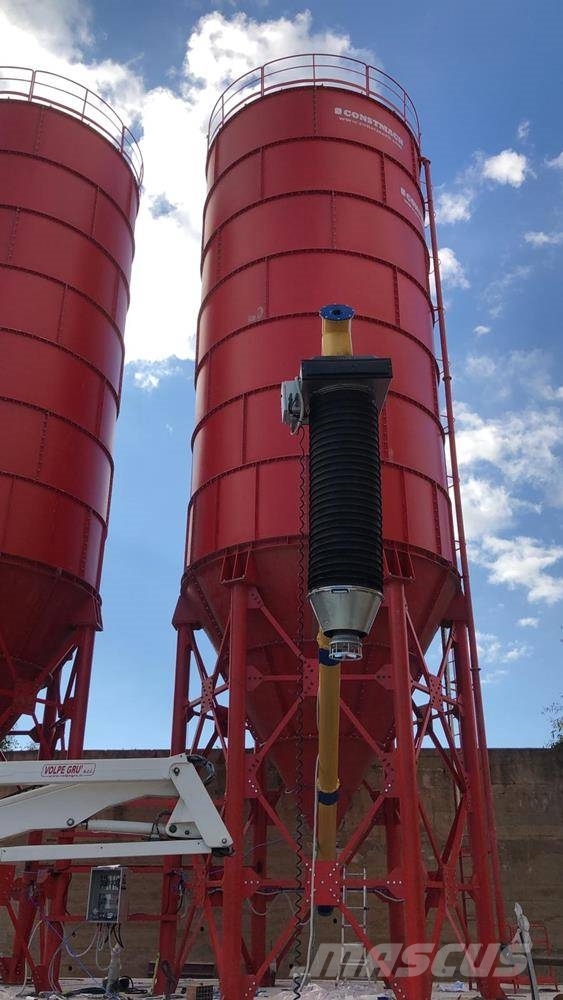

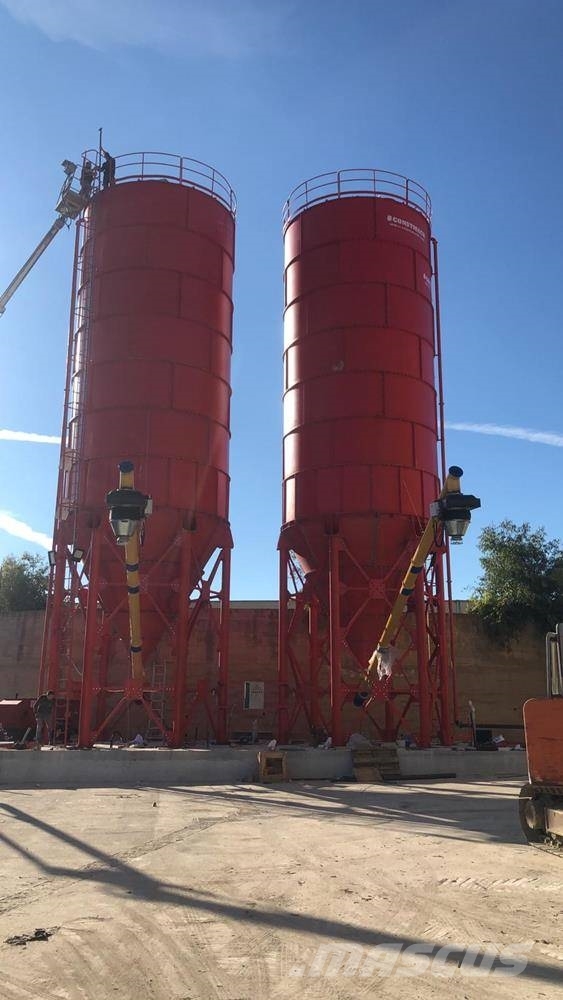

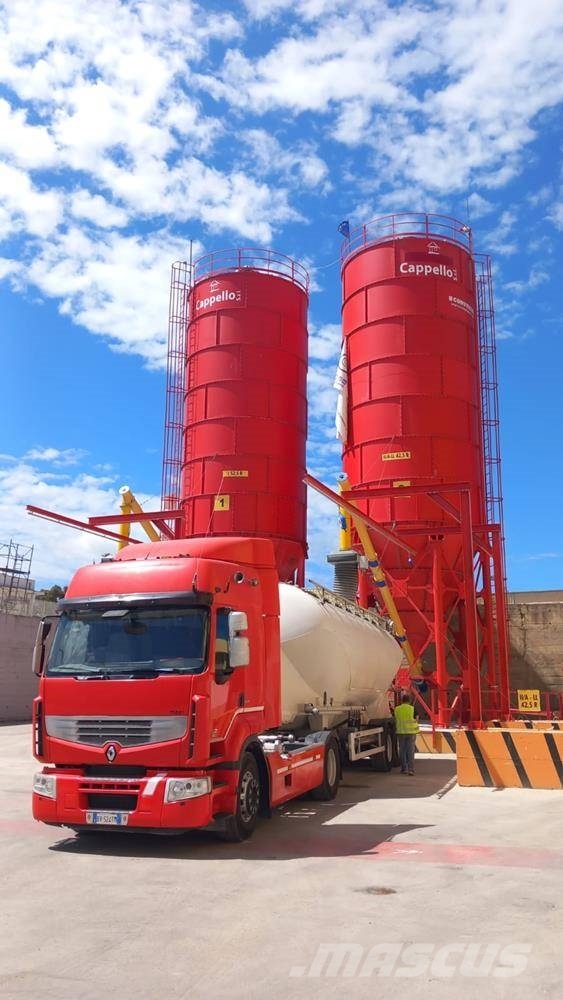

You can call us 24/7 for 300 Ton Cement Silo for Sale Our CS-300 model is a cement silo that stands out with its capacity. 300 tons of storage capacity provides an ideal solution for high volume projects. The silo, which has a height of 18450 mm and a diameter of Ø 5140 mm, is supported by 6 sturdy legs. These legs are made of Ø273 x 10 mm steel pipe and reinforced with NPL 80 mm corner irons. The silo body and other components are made of ST-37 metal sheets, which guarantees durability and longevity. The structure, consisting of 191 parts, is the result of a detailed engineering and production process. The tapered piece supported by 20 mm thick foot plates and 200 mm steel C channel provides stability and security. CS-300's features such as external manhole and internal manhole offer ease of maintenance and use. Silo roof comes with arresters and maintenance platform is available. The high-quality painting process is completed with 1 layer of anticorrosive paint and 2 layers of topcoat epoxy paint, providing a total protection of 140 microns thick. If you are looking for high performance and reliability in your projects, our CS-300 model is just for you. With its solid structure, large storage capacity and superior material quality, it meets your expectations even in the most challenging conditions. This silo, with every detail carefully designed, will facilitate your business processes and increase your efficiency. CS-300 - 300 Ton Cement Silo Technical Specifications Silo Capacity 300 tons, 230 m³ (cement density 1.3 tons/m³) Silo Height 18450 mm Silo Diameter Ø 5140 mm Silo Foot Quantity 6 Silo Outlet Diameter Ø 300 mm Number of Components 191 Silo Weight 22000 kg Silo Foot Material Ø273 x 10 mm steel pipe Silo Foot Supports NPL 80 mm corner iron Silo Foot Plates 20 mm Tapered Part Support Material 200 mm steel c channel Tapered Part Material ST-37, 8 mm metal sheet Silo Body Material ST-37, 8 - 6 - 5 mm metal sheet Silo Top Cover Material ST-37, 5 mm metal sheet Charging Pipe is 4" steel pipe up to the silo foot Internal Manhole available Outer Man Hole is available Silo Roof is included in the arrests Maintenance Platform available Structure Analysis is carried out for Silos and the production process is carried out depending on the approved projects. Painting 1 layer of anticorrosive paint, 2 layers of topcoat epoxy paint, total paint thickness 140 micronsPokaż więcej

CONSTMACH MAKİNA İTHALAT İHRACAT LTD.ŞTİ.

Halilbeyli Bayosb Anadolu Cad. No:1 Bağyurdu Organize Sanayi Bölgesi 35743 Kemalpaşa IZMIR Turcja
