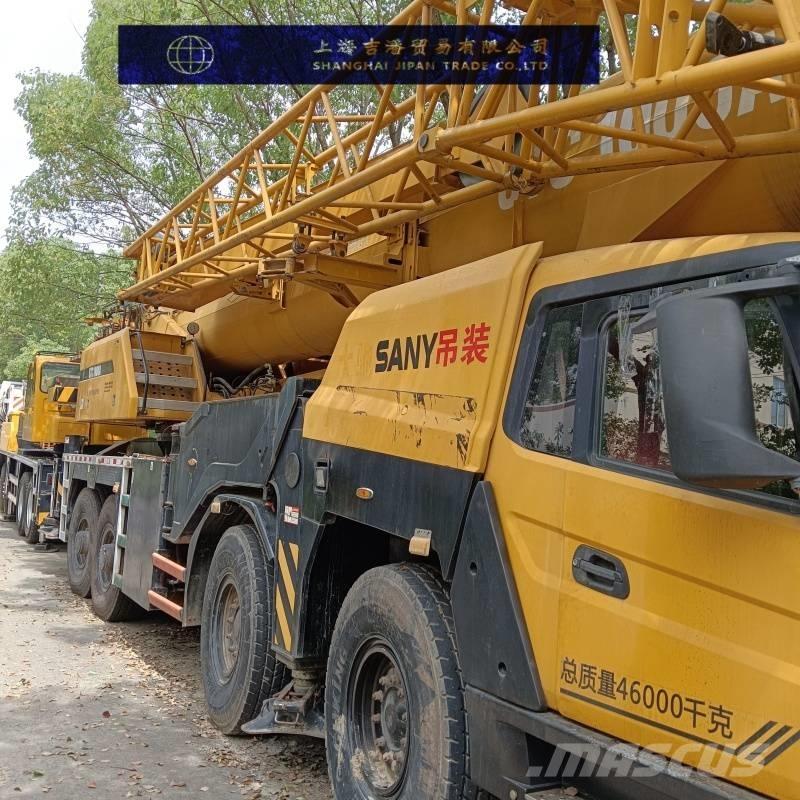

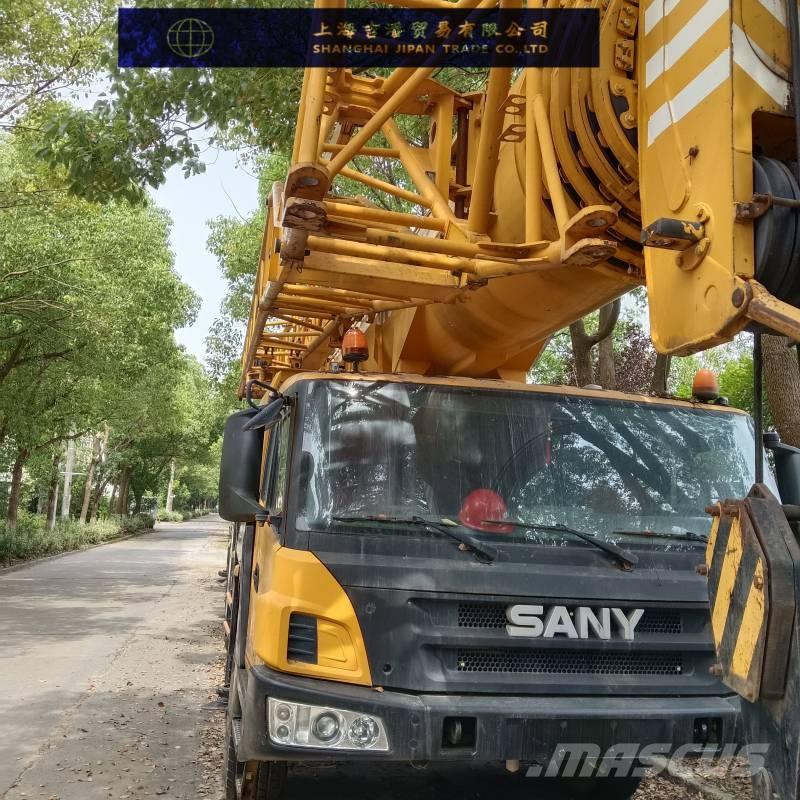

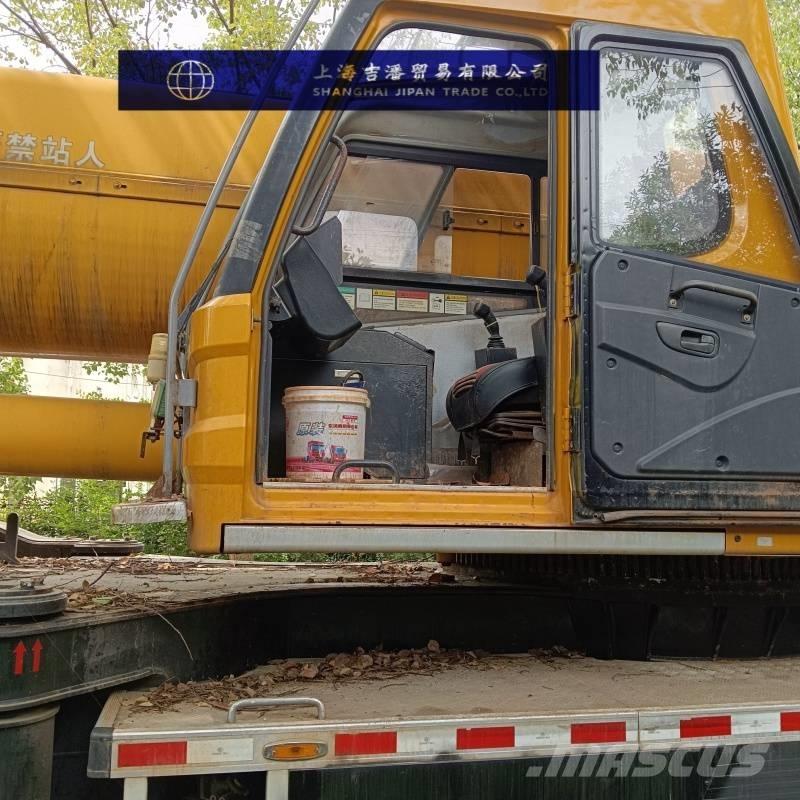

Sany STC 1000A

Fly Jib ,Hook ,Counter Weight, ETC. We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Fly Jib ,Hook ,Counter Weight, ETC. Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter Specification Rated Total Lifting Capacity 100 tons Minimum Rated Radius 3 meters Lifting Moment Basic boom: 3300 kN·m; Maximum main boom: 1824 kN·m Boom Length Basic boom: 12.26 meters; Maximum main boom: 56 meters; Maximum main boom + jib: 71.5 meters (optional up to 77.5 meters) Lifting Height Basic boom: 12.26 meters; Maximum main boom: 56 meters; Maximum main boom + jib: 71.5 meters (optional up to 77.5 meters) Outrigger Span (Transverse × Longitudinal) 7.8m × 7.96m Maximum Single-Rope Speed of Main/Auxiliary Winch (No-Load) 123 m/min (both) Boom Full Extension/Retraction Time 480 seconds / 500 seconds Slewing Speed 0 - 1.6 r/min 2. Dimensions & Weight Parameters Parameter Specification Overall Length 14000 mm Overall Width 2800 mm Overall Height 4000 mm Gross Vehicle Weight 46000 kg Front Axle (1st & 2nd Axles) Load 11000 kg Rear Axle (3rd & 4th Axles) Load 12000 kg Minimum Ground Clearance 320 mm 3. Power & Driving Parameters Parameter Specification Engine Model ISLe375 40 Rated Power 275 kW / 2100 rpm Rated Torque 1550 N·m / (1100 - 1500) rpm Emission Standard China National IV Maximum Driving Speed 80 km/h Minimum Turning Radius 11 meters Gradeability 40% Fuel Consumption per 100 km ≤ 50 L Braking Distance (at 30 km/h) ≤ 10 meters Approach Angle / Departure Angle 21° / 19°
