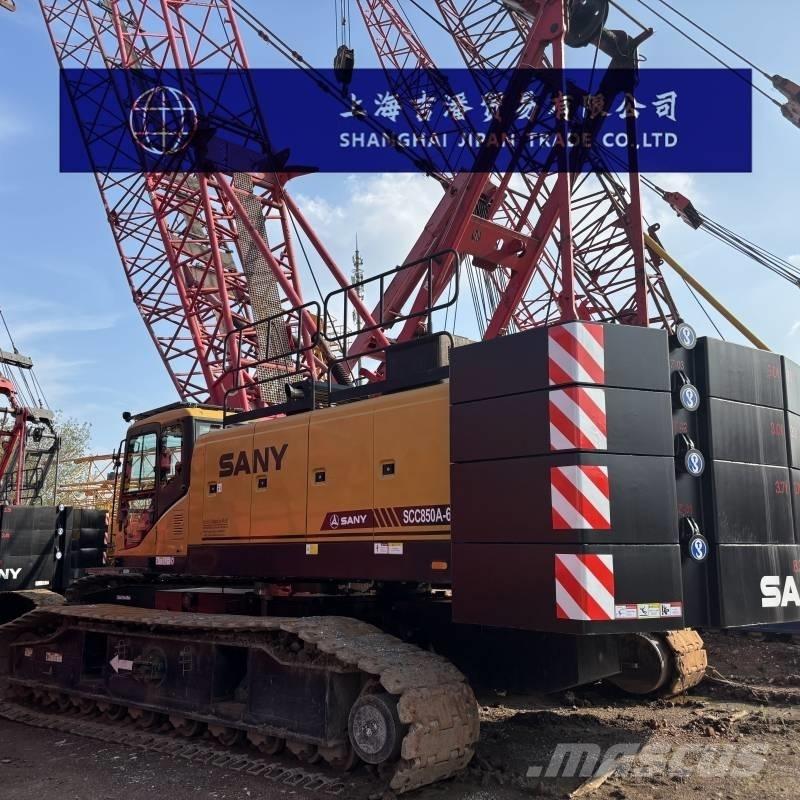

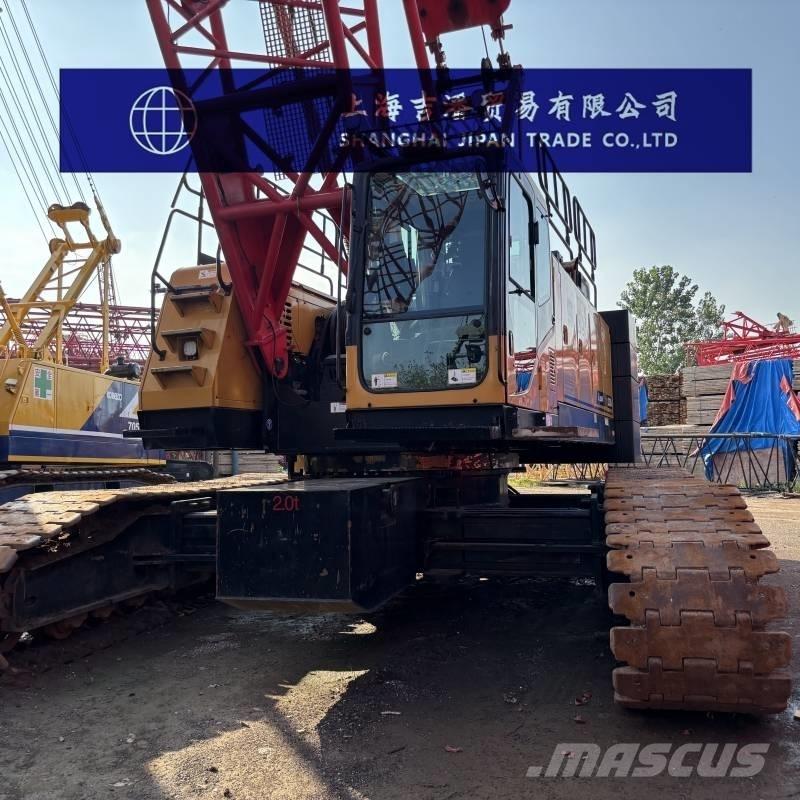

Sany SCC 850 A-6

Fly Jib Hook Counter Weight We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Lifting capacity: Maximum rated lifting capacity 85 tons, maximum lifting moment 358 tons · m, main boom length 12m-57m, auxiliary boom length 9m-18m, the longest combination of main boom and auxiliary boom is 48m+18m. Power system: The engine model is Weichai WP7, with a rated power of 199kW at 2300rpm, an operating power of 199kW at 1800rpm, a maximum torque of 1200N · m at (1200-1500) rpm, and a fuel tank capacity of 400L. Speed parameters: Main (auxiliary) hoist rope speed 0-135m/min, main luffing rope speed 0-55m/min, auxiliary luffing rope speed 0-101m/min, rotation speed 0-2.4rpm, traveling speed 0-1.2/0-0.4 (two gears) km/h. Hydraulic system: The maximum pressure of the system is 35MPa. The pressure of the main, auxiliary and transformer hoisting and traveling systems is 35MPa. The pressure of the slewing system is 24MPa. The capacity of the hydraulic oil tank is 305L. Dimensions and weight: The width of the track plate is 800mm, the number of tracks is 65 ×2, the ground contact pressure is 0.088MPa, the total weight of the rear counterweight is approximately 27.6t, and the maximum single piece transportation weight is 55t. Cab configuration: Upgraded design, softened interior and control box, equipped with low beam front lighting, rearview mirrors, panoramic sunroof, etc. It is installed with air conditioning for both heating and cooling, radio, and the seat is a suspended, multi-degree-of-freedom adjustable type with an unloading switch
