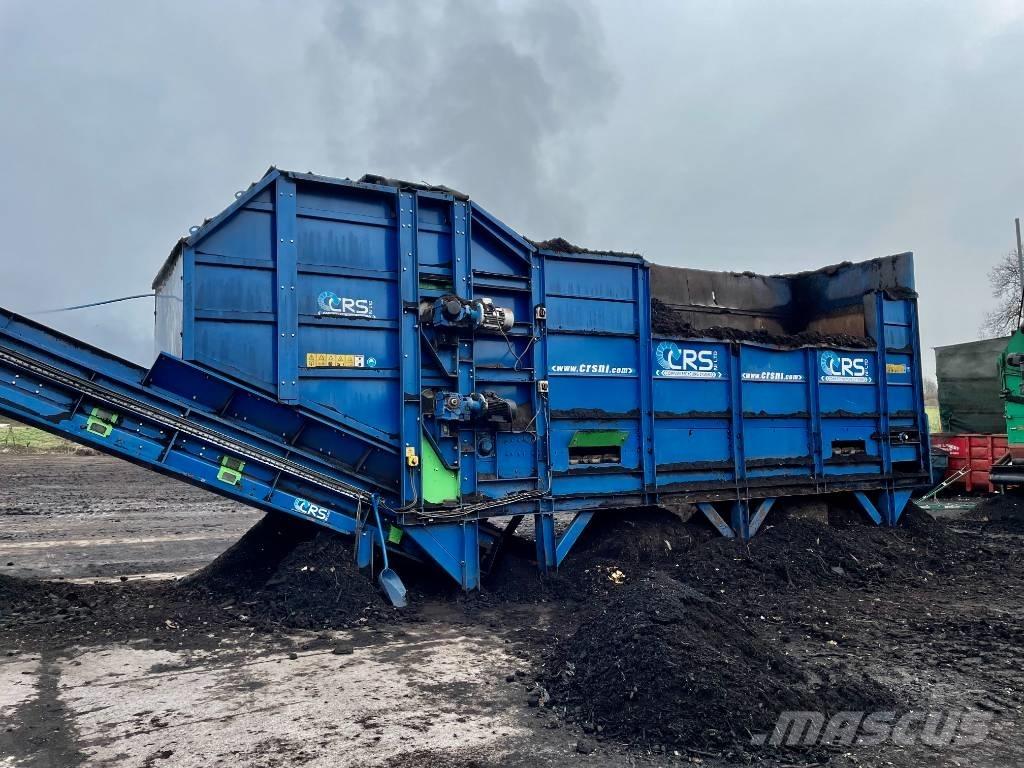

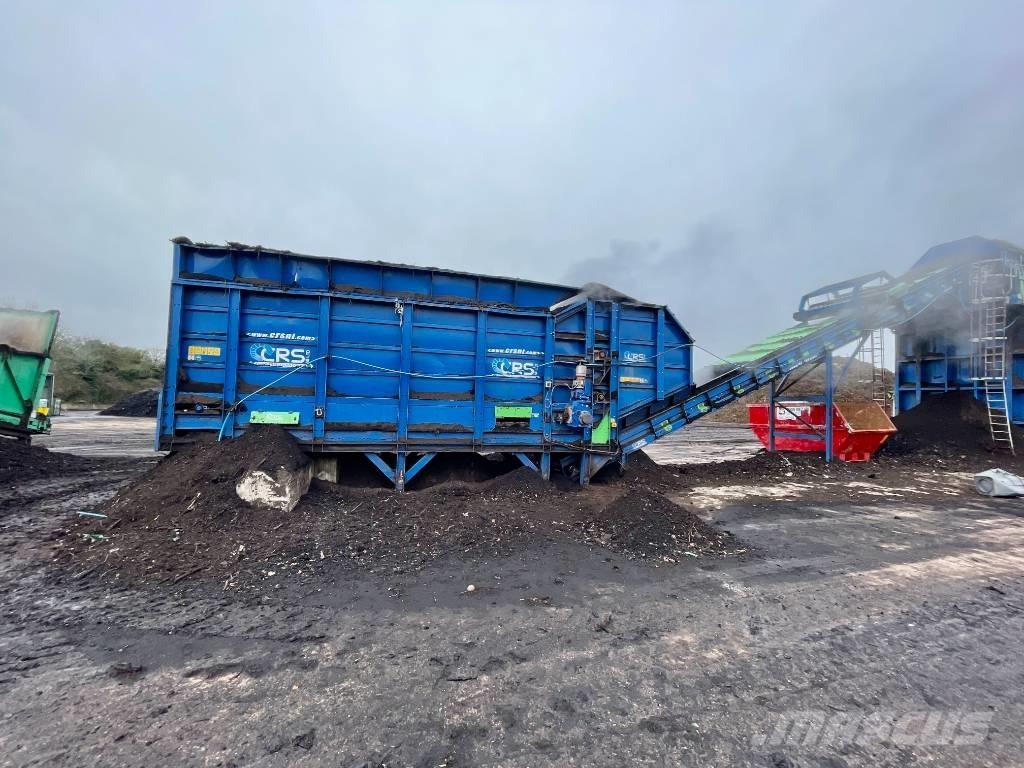

CRS NI Trommel 1620
Cena bez VAT
Cena do uzgodnienia
Drukuj
INFO
Grupa produktów
Sprzęt segregujący
Marka / model
CRS NI Trommel 1620
Rok produkcji
2019
Przebieg/godziny
3 100 h
Lokalizacja
Llangyfelach
Kraj
Wielka Brytania
Mascus ID
F535BDF0
DANE SZCZEGÓŁÓWE
Nr ew. wew.
SH2023/06
Dodatkowe informacje

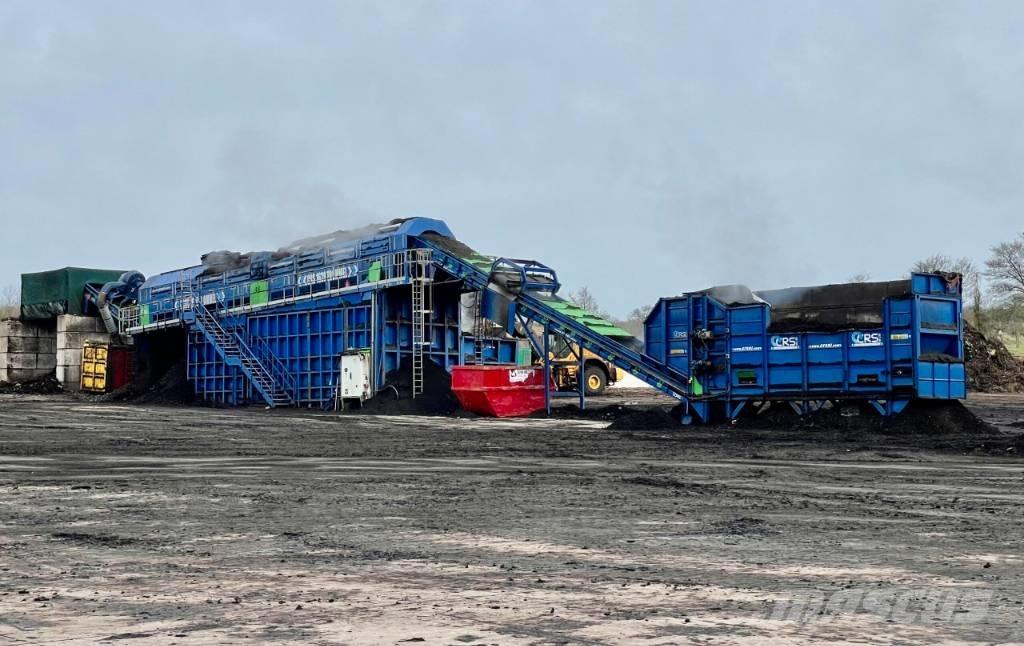

Comprising of following:
Feed Hopper
1400 mm wide steel slatted conveyor with Nord 3 kw Electric motor drive.
Twin dosing drums 5.5kw Electric motor drive each.
Dimensions: 11 m long x 3 m wide x 4.5 m high.
Trommel Feed Conveyor
15.5 m long x 1200 mm wide belt. Nord 7.5 kw Electric motor drive.
Conveyor Tek 1200 mm wide Overband Magnet with 1.5Kw Electric motor drive.
Trommel Screen 1620
Comprising of two drums linked together total length of 19.4 m, diameter 2 m.
Drum No1: Fitted with 15 mm square punch plates.
Driven by all 4 wheels 5.5kw Electric motor drive each.
Drum No2: Fitted with 15 mm & 25 mm square punch plates.
Driven by 2 wheels on discharge end only 5.5kw Electric motor drive each.
Mounted on supporting structure complete with including access platform & stairs.
Dimensions: 2.7 m wide x 2.9 m high.
Reject Out feed Conveyor.
8.5 m long x 1200 mm wide belt. Nord 5.5 kw Electric motor drive.
Air Vacuum system over conveyor belt with 18.5 kw Electric motor drive fan unit.
Electrical control panel
The system is still currently operating price excludes dismantling and removal from site
Recycling Plant & Machinery
Bryntywood SA5 7LP Llangyfelach Swansea Wielka Brytania
