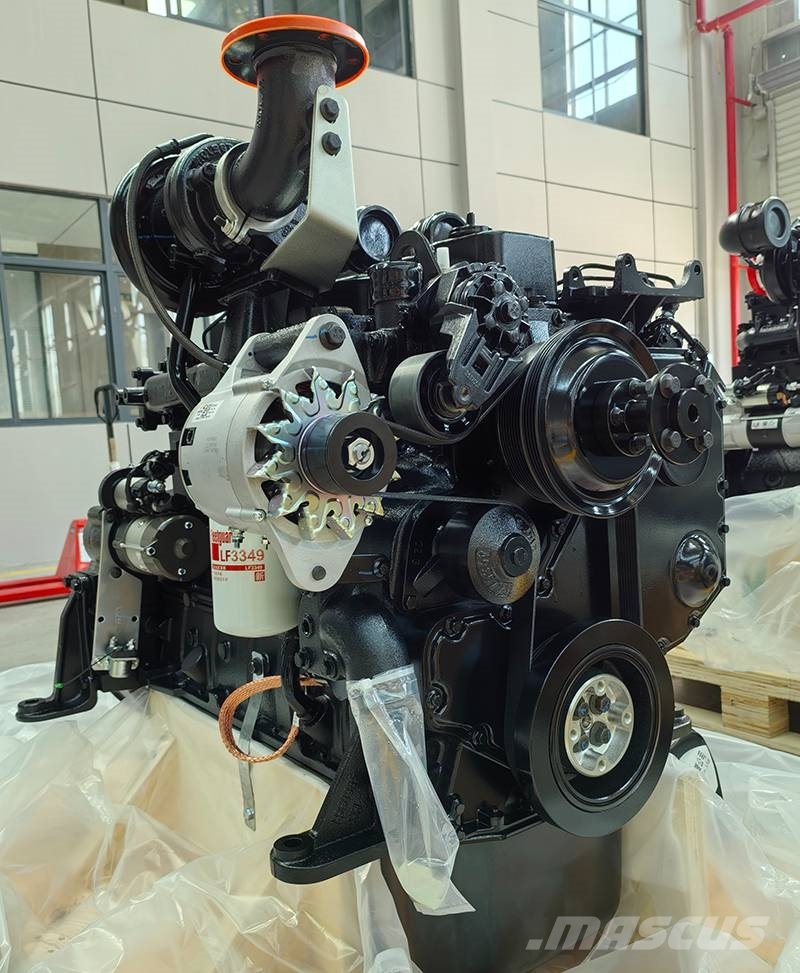

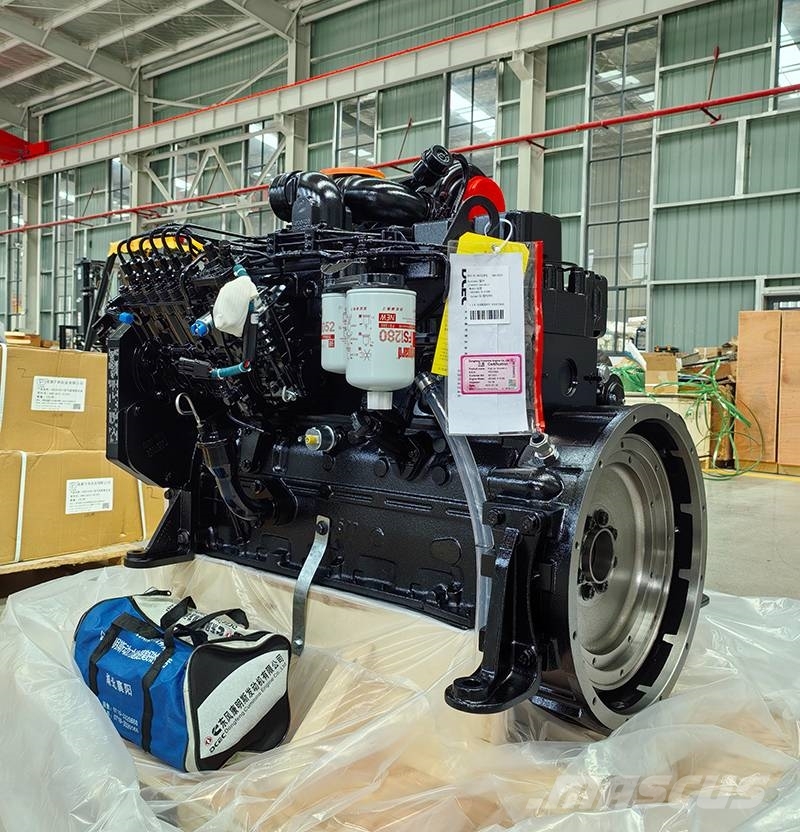

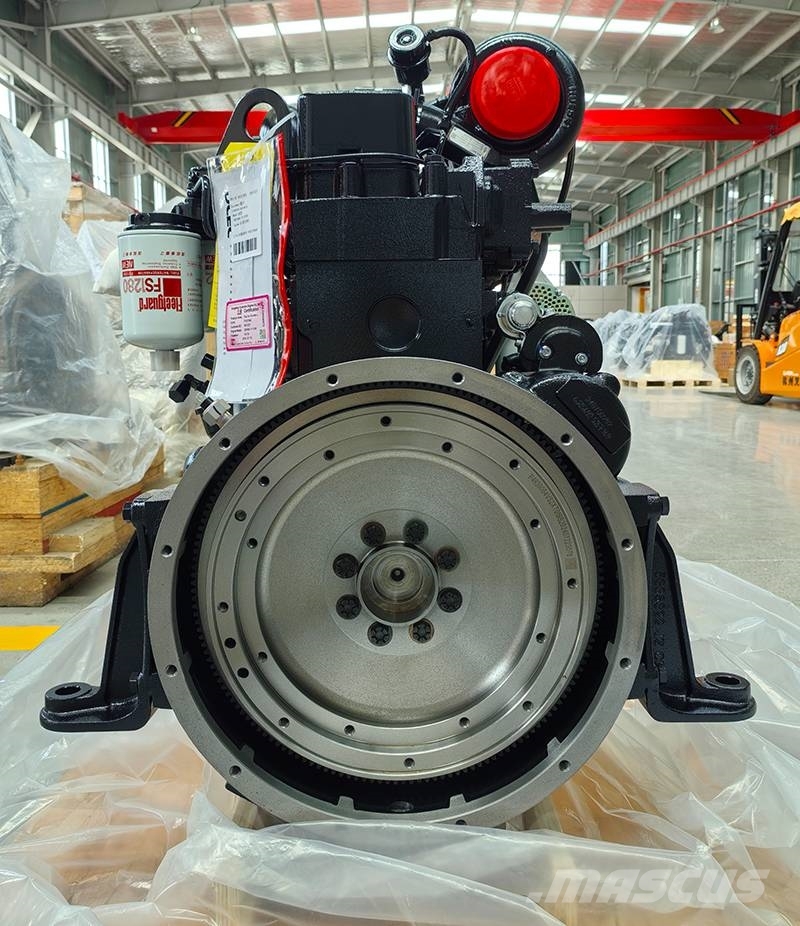

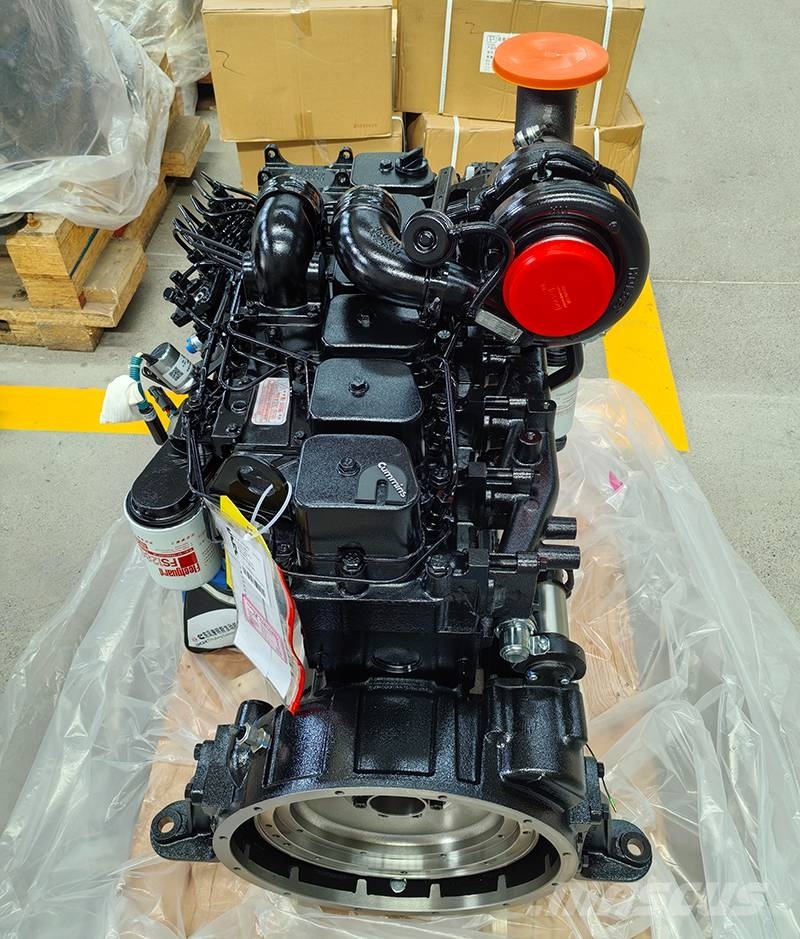

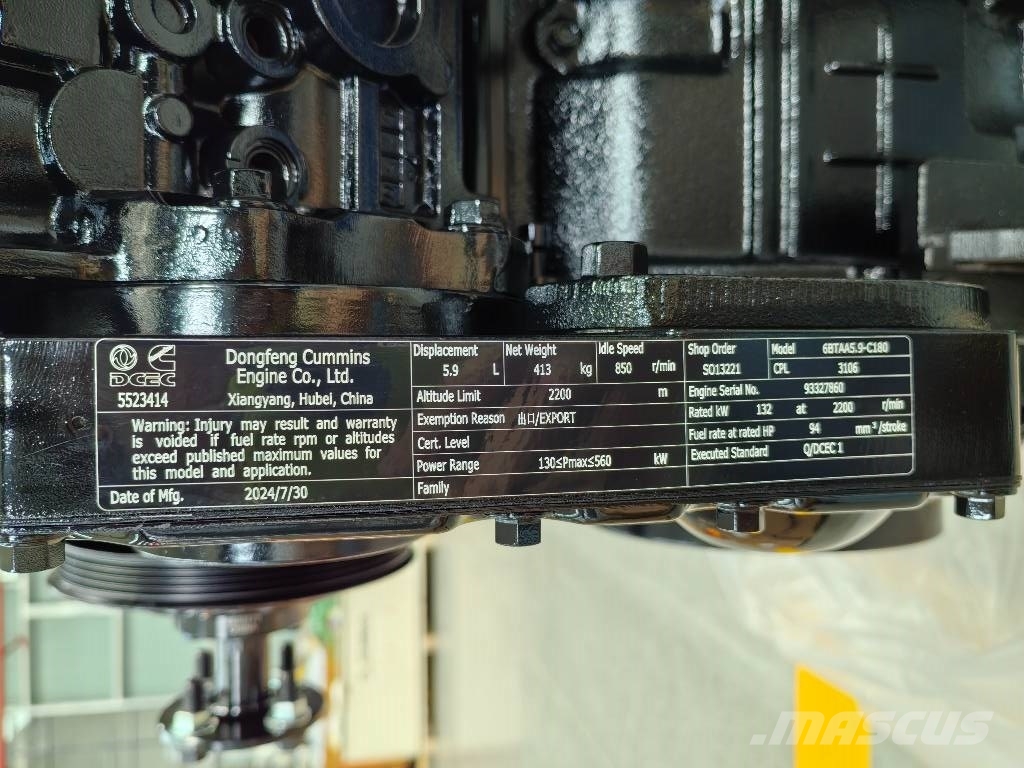

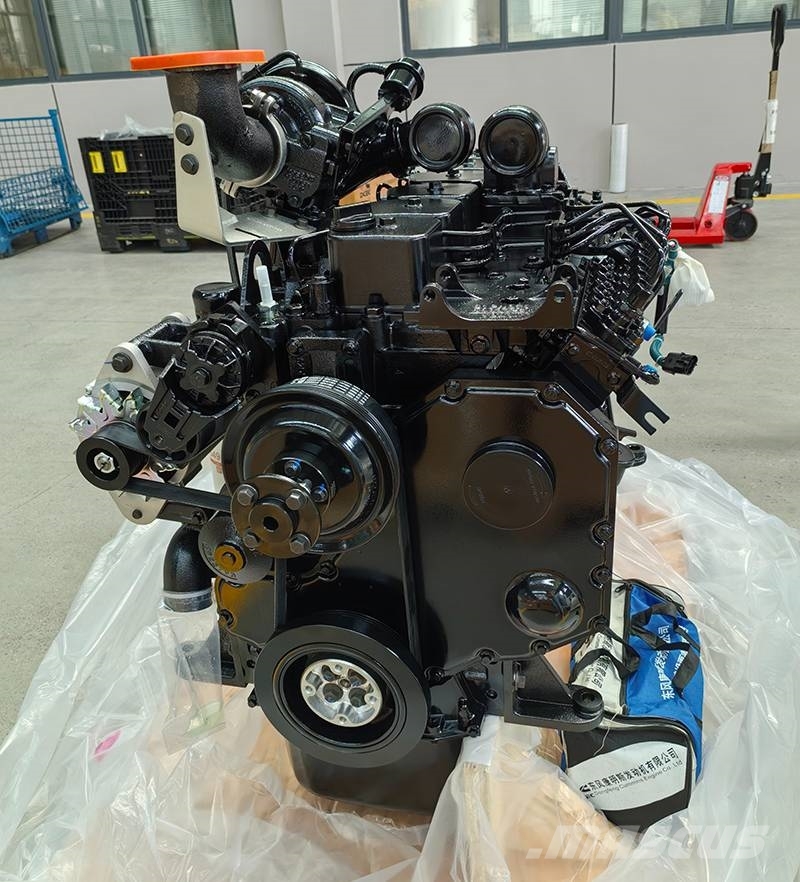

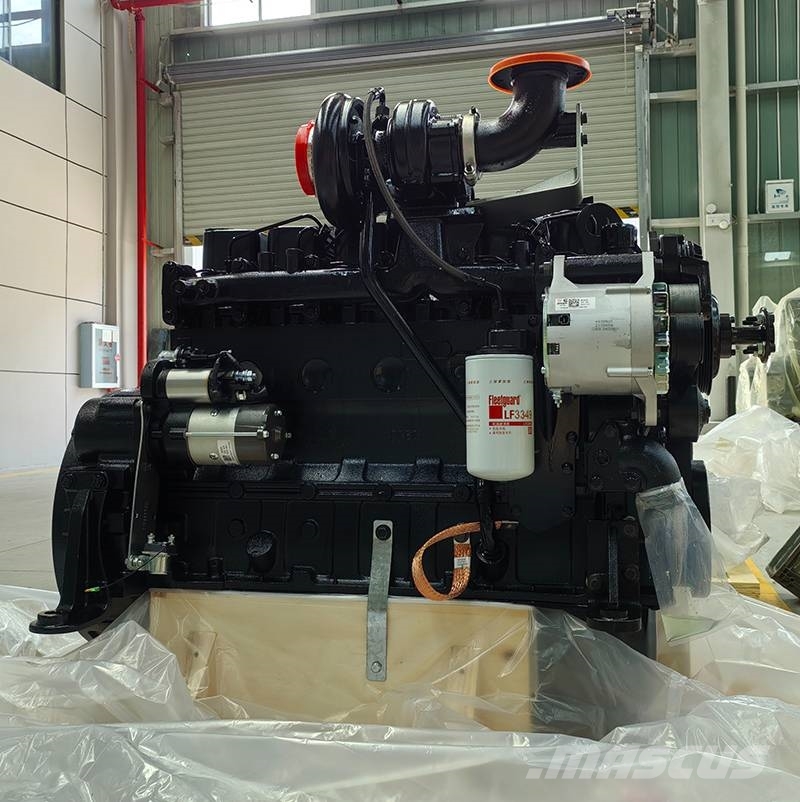

Cummins 6BTA5.9-C180 Four-stroke water-cooled engine

1. Basic parameters Model definition: It belongs to the Cummins B series diesel engine. The suffix "C180" represents the 180 horsepower enhanced version suitable for construction machinery. Core configuration: Inline six-cylinder layout, four-stroke water-cooled design, displacement 5.9L (bore × stroke: 102mm × 120mm). Turbocharged intake, mechanical direct injection fuel system, in line with the National II emission standard. The cooling method is forced water cooling, the rated voltage is 24V, and it is suitable for the power supply system of construction machinery. 2. Performance parameters Power output: Rated power 118kW (about 158 ​​horsepower) @2200r/min, the maximum power can reach 116kW (some working conditions). Peak torque 640N·m@1400r/min, low speed torque performance is outstanding, suitable for high load operation. ‌Durability‌: Supports continuous ‌24-hour‌ operation, with a fuel tank capacity of 260L, meeting the long-term operation requirements of construction machinery.
