VEOLIA

Cena bez VAT

Compnay LOGO
Images24
VEOLIA Maszyny budowlane - Inne
VEOLIA Maszyny budowlane - Inne
VEOLIA Maszyny budowlane - Inne
FavoriteUlubione
shareUdostępnij
Save searchZapisz wyniki wyszukiwania
Drukuj

INFO

Grupa produktów
Maszyny budowlane - Inne
Marka / model
VEOLIA
Stan
Sprzęt
Lokalizacja
Langley, British Columbia
Kraj
Kanada
Mascus ID
D0D6966A

CENA

Wybierz walutę

DANE SZCZEGÓŁÓWE

Nr ew. wew.
131107
Dodatkowe informacje

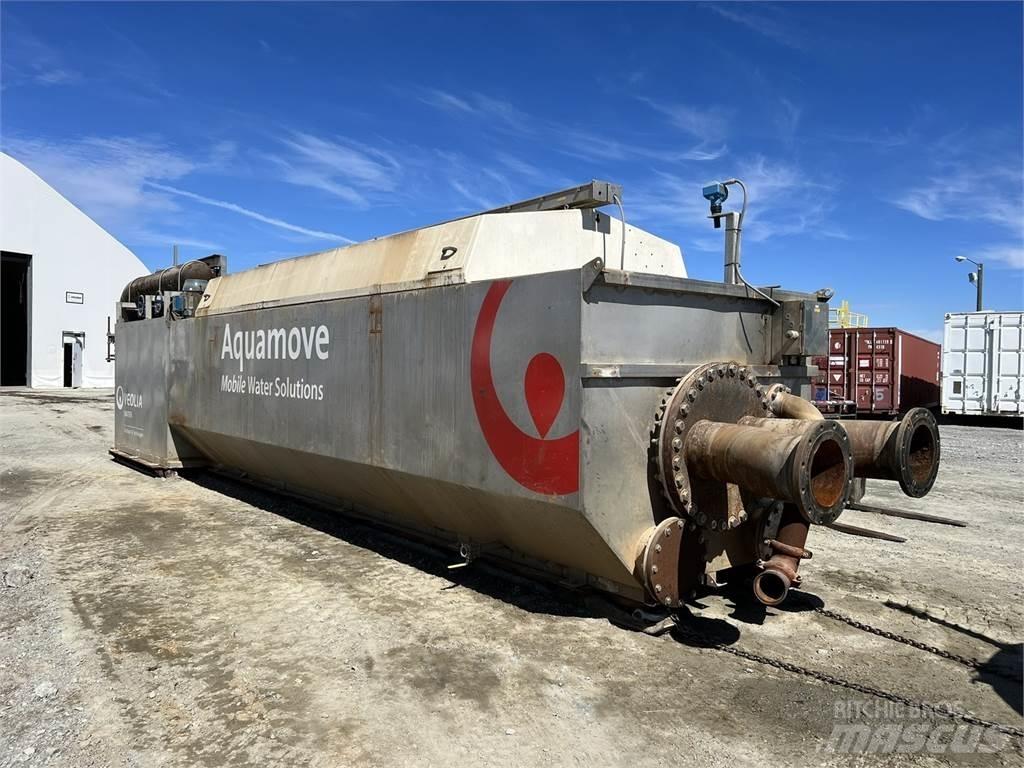

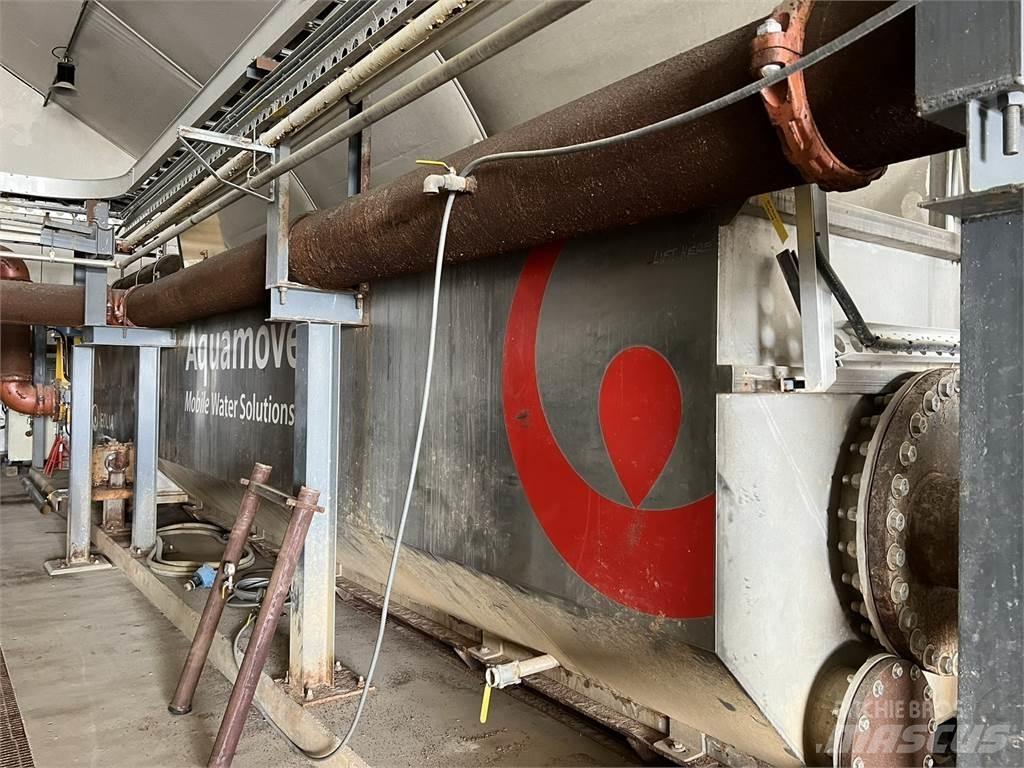

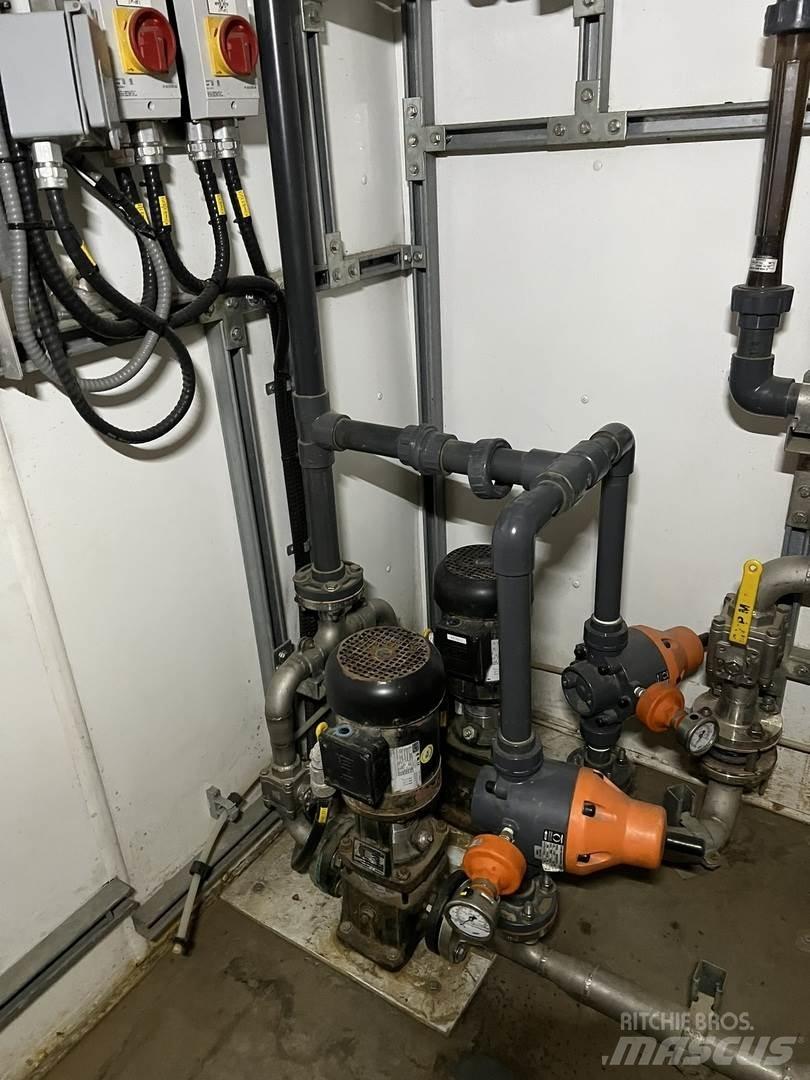

Water Treatment System w/ Clarifiers, Sand Filters, & Disc Filter Title: Water Treatment System w/ Clarifiers, Sand Filters, & Disc Filter SKU: 131107 Condition: Used This Water Treatment System Includes: 2 x VEOLIA-JOHN MEUNIER Actiflo High-Performance Clarifiers Model: ACP2-40M Nominal Capacity: 1100 USGPM Required Capacity: 350 - 1500 USGPM Rise Rate ... Nominal Flow: 32 USGPM/Sq. Ft. Rise Rate ... Min. Required Flow: 10 USGPM/Sq. Ft. Rise Rate ... Max. Required Flow: 44 USGPM/Sq. Ft. Each Actiflo High-Perfomance Clarifier comes with the Actiflo Turbo Package, consisting of: - Coagulation Tank - Maturation Tank - Lamellar Settling Tank - Sludge Collection Troughs & Hopper - Clarified Water Troughs - Circular Scraper - Microsand Recirculation System (Hydroclones) - Each recirculation line has one pump and one hydroclone - Hydroclone Specifications: - Make: EXSTO - Model: MA-20 (760mm) - Material: Polyurethane TM390 (ACS) - Inlet (Vortex Finder): 42mm - Outlet (Apex): 30mm - Inlet Flow (Sludge): 66 - 132 USGPM - Inlet Flow (Service Water): 10% to 20% of Sludge Inlet Flow - Performance: Recovery of solids > 50 microns 1 x KRUGER/HYDROTECH 2200 Series Disc Filter Model: HSF2224D-1FN Serial No.: 6757 Manufacture Year: 2010 Drum Diameter w/ Discs: 2200mm Max. Number of Discs: 24 Includes: Enclosed tank and control enclosure 2 x Chemical & Electrical Control Containers Each containing: - Control and Electrical Panels - Retention Tank - Hot Water Tank - Coagulant Dosing Station - Polymer Preparation and Dosing Station (VEOLIA Hydra-Pol 250) - NaOH Dosing Station - Emergency Shower Station 2 x BAKER 4-Pod Sand Filter Description: Skid-mounted, high-rate, automatic backwashing sand media filter with 4 pods, designed for general purpose water filtration of organic and inorganic solids. Model: IL 5424-4AS Serial No.: SFL22333 Min./Max. Pressure: 35/80 PSI Max. Flow: 1000 GPM B/W Flow: 80 GPM Supporting Documents [Manual - Actiflo High-Performance Clarifier ACP2-40M and Turbo Package](... - KRUGER/HYDROTECH 2200 Series Disc Filter HSF2224D-1FN](... - Disc Filter General Arrangement](... - Chemical Container General Arrangement](... - Clarifier Piping & Instrumentation Diagram (PID)](... - Disc Filter Piping & Instrumentation Diagram (PID)](... - Service Water Piping & Instrumentation Diagram (PID)](... - Coagulant Piping & Instrumentation Diagram (PID)](... - Polymer Piping & Instrumentation Diagram (PID)](... - Caustic Piping & Instrumentation Diagram (PID)](... - Process Flow Diagram](... - Possible Installation Layout](... system is designed by Veolia's AQUAMOVE service, with each component designed with the ability to be mobile and easily transported.Pokaż więcej

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
