HONEYWELL M7284Q1009

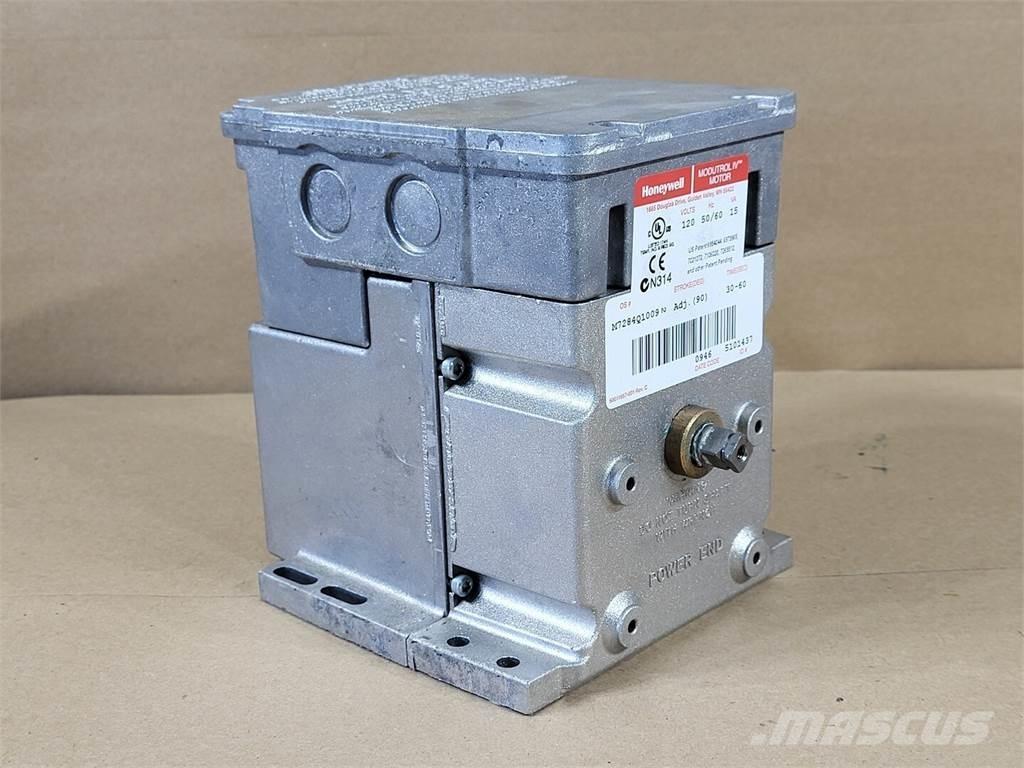

Modutrol IV Motor Damper Actuator M7284Q1009 Title: Modutrol IV Motor Damper Actuator M7284Q1009 SKU: 131088 Model: M7284Q1009 Condition: Surplus New Dimensions: 8.00 (H) x 6.00 (W) x 10.00 (L) inches Connections: 0.375" Square (10 mm) Shaft Diameter Ratings: NEMA 3, 150 in-lb torque Voltage/Power:120 Vac, 50/60 Hz Input(s) - Control Signal: Modulating 4-20 mA - Fail Safe Mode: Non-Spring Return (NSR) - Ambient temperature rating: -40 Deg F to 150 Deg F (-40 C to +66 C) - Electrically normally closed, shaft rotates clockwise - Adjustable: 90 to 160 degrees, Symmetrical (Factory Stroke Setting: Fixed 90 Deg) - Timing: Nominal 30-60 sec - Mounting: Foot-mounted, Dual-ended shaft - 2 Internal Auxiliary Switches, adjustable zero and span
