INFO

Grupa produktów
Maszyny budowlane - Inne
Marka / model
Haas VF-4SS
Rok produkcji
2014
Stan
Sprzęt
Lokalizacja
Langley, British Columbia
Kraj
Kanada
Mascus ID
FA7C76DA

CENA

Wybierz walutę

DANE SZCZEGÓŁÓWE

Nr ew. wew.
127505
Dodatkowe informacje

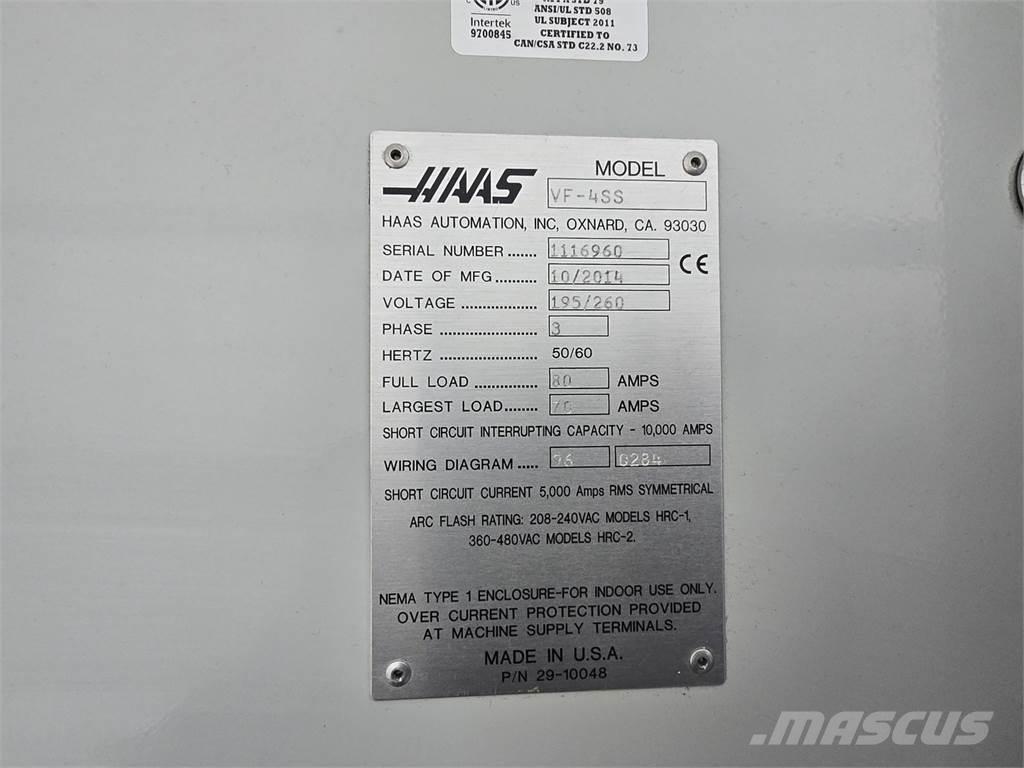

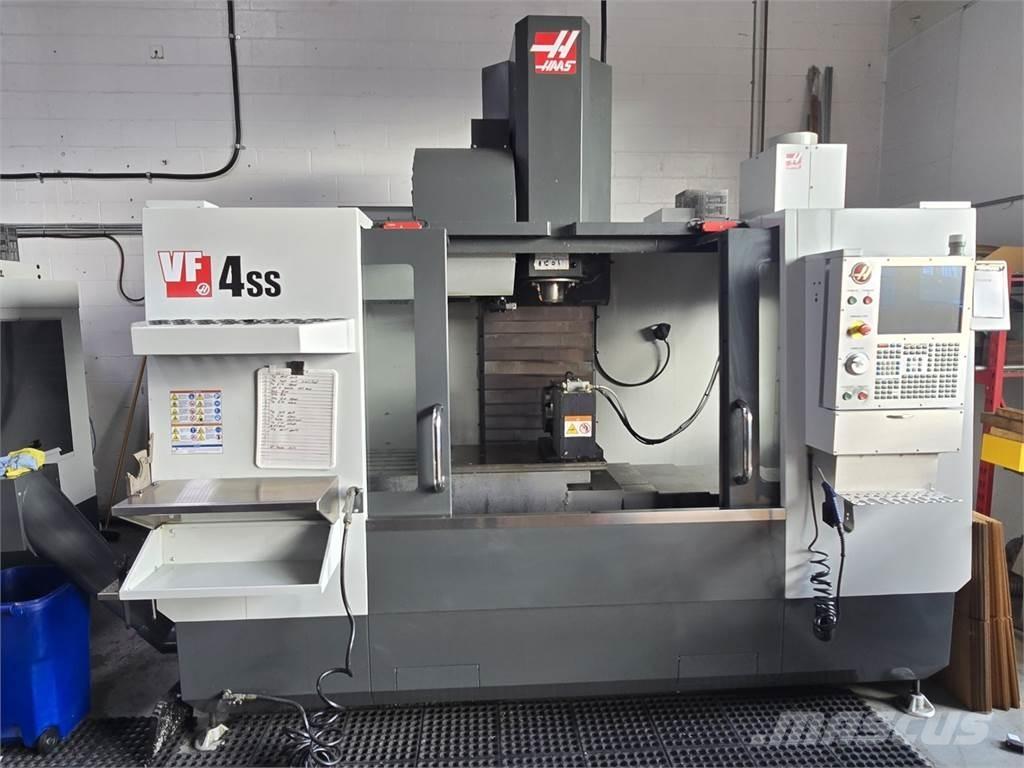

VF-4SS CNC Vertical Milling Machine w/ Tooling Title: VF-4SS CNC Vertical Milling Machine w/ Tooling SKU: 127505 Model: VF-4SS Year: 2014 Condition: Used S/N: 1116960 GeneralTable Size:52" x 19.5" CNC:Yes ElectricalVoltage:220/440volts Phase:3-phase Amps:35 - 70amps Dimensions: 96.00 (H) x 105.00 (W) x 140.00 (L) inches **4th Axis not included ($11,000 extra) [VF Series Flyer](... 3,338 total hours indicated (982 cycle start hours/ 542 feed cutting hours) Travels: - X: 50" - Y: 20" - Z: 25" Spindle Nose to Table (max - min): 29.2" - 4.2" Max Rating: 30 hp Max speed: 12,000 rpm Max torque: 90.0 ft-lbf ... 2000 rpm Tapers: CT40 | BT40 | HSK-A63 taper T-Slot Width: 0.626" to 0.630" T-Slot center distance: 3.15" Number of Std T-slots: 5 Max weight on table: 1,750 lb (evenly distributed) Feedrates: 833 ipm max cutting 1400x1400x1400 ipm XYZ rapids Spindle speed: 12,000 rpm Spindle power: 30 hp Features: - Inline Direct-Drive drive system - Air / oil injection bearing lubrication - Liquid cooled cooling - (2) GMT 6" Vices - (6) CAT40 toolholdersPokaż więcej

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia Kanada
