INFO

Grupa produktów
Hydrauliczne młoty do palowania
Marka / model
BSP HH6 LD
Rok produkcji
1998
Lokalizacja
Etten Leur, Noord-Brabant
Kraj
Holandia
Ocena ogólna
1
2
3
4
5
Mascus ID
3E85A9F3

CENA

Wybierz walutę

DANE SZCZEGÓŁÓWE

Data ostatniej kontroli
2024-10-14
Liczba poprzednich właścicieli
1
Waga transportowa
8 500 kg
Wymiary transportowe (DxSxW)
5500 x 740 x 1110 mm
Stan techniczny/Gwarancja
warranty expired
Kraj produkcji
Wielka Brytania
Warunki dostawy
EXW
Dodatkowe wyposażenie

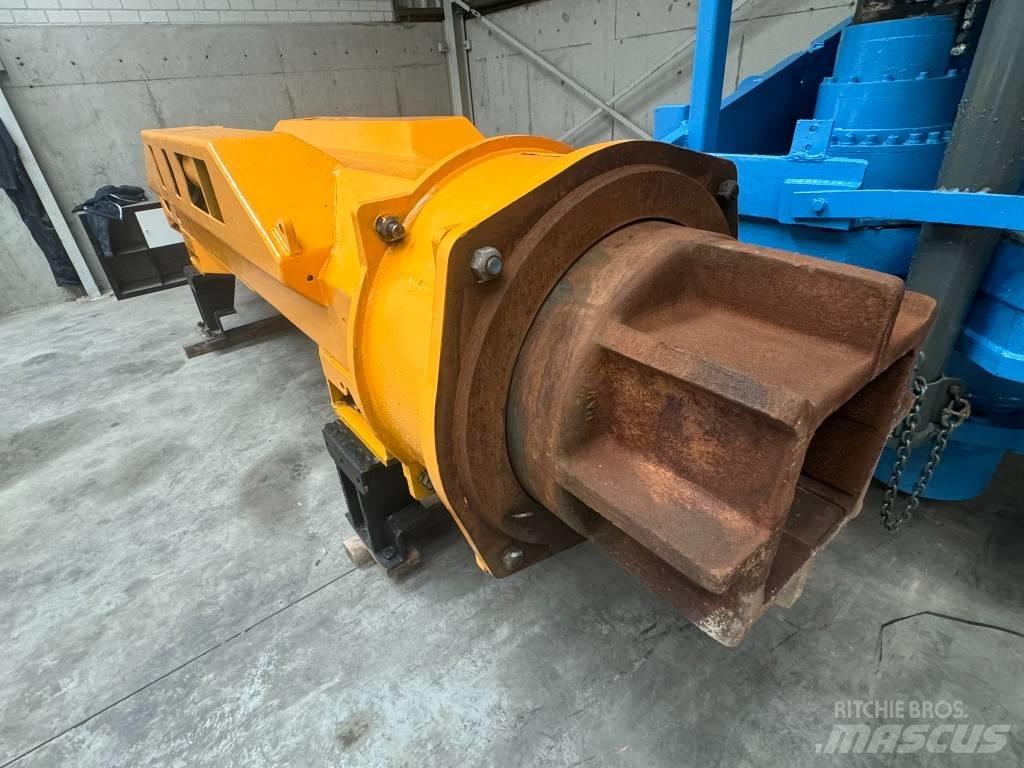

Leader guides for 720mm wide leader mast Hydraulic hose bundle Hoisting device for lifting the hammer Electronic cable Control box Drive cap for 30x30cm precast pile No manifold included
Dodatkowe informacje

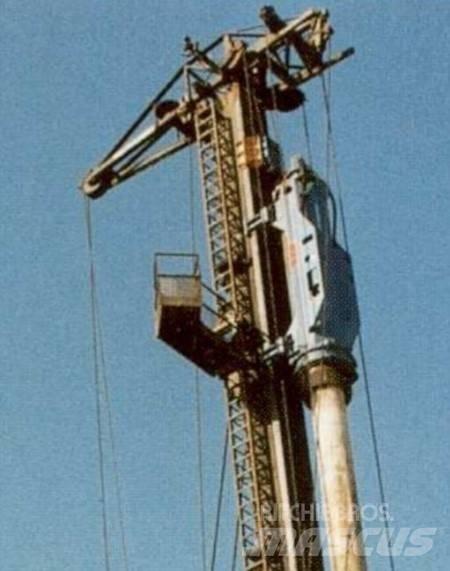

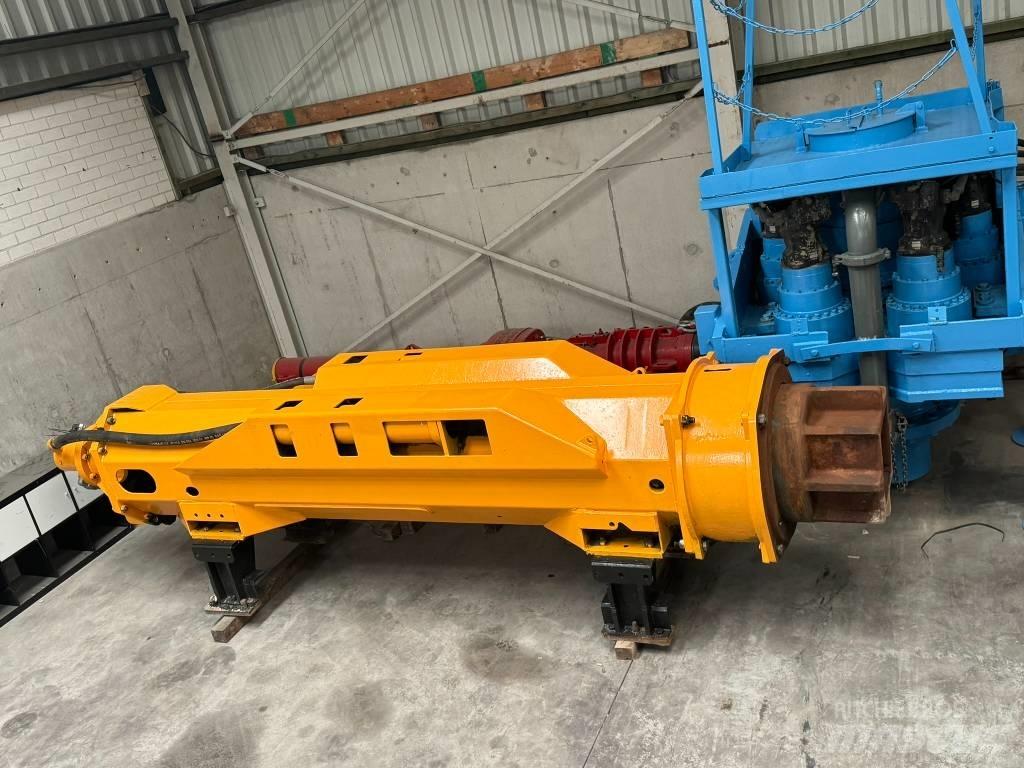

The BSP HH 6LH is a hydraulic impact hammer which was especially designed for leader guided pile driving. The hammer has a very smart design which makes it short and therefor makes it suitable to drive longer piles than with most other hammers. This hammer is suitable to be used with the drive cap system of van Hattem. It can be used to drive steel tubes but the hammer is also suitable for driving precast concrete piles. Specifications: Max. energy 71 kNm Max. stroke 1200 mm Length is 5500 mm Max. blow rate at 1.200mm stroke is 40 blows/min. Max. oil flow 180 ltr/min Max. pressure: 250 bar Operational weight 8500 kgPokaż więcej

Foundiz

Kroonstraat 1 4879 AV Etten-Leur Noord-Brabant Holandia
