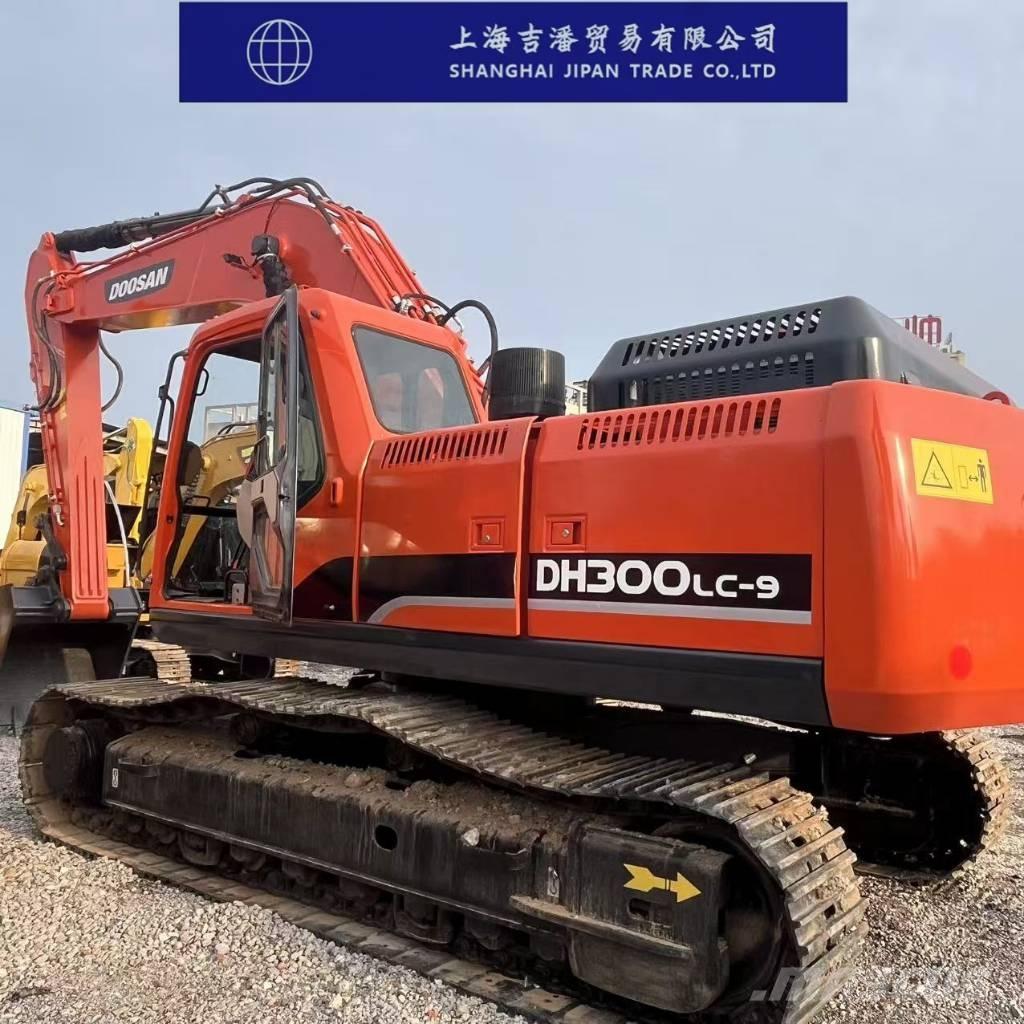

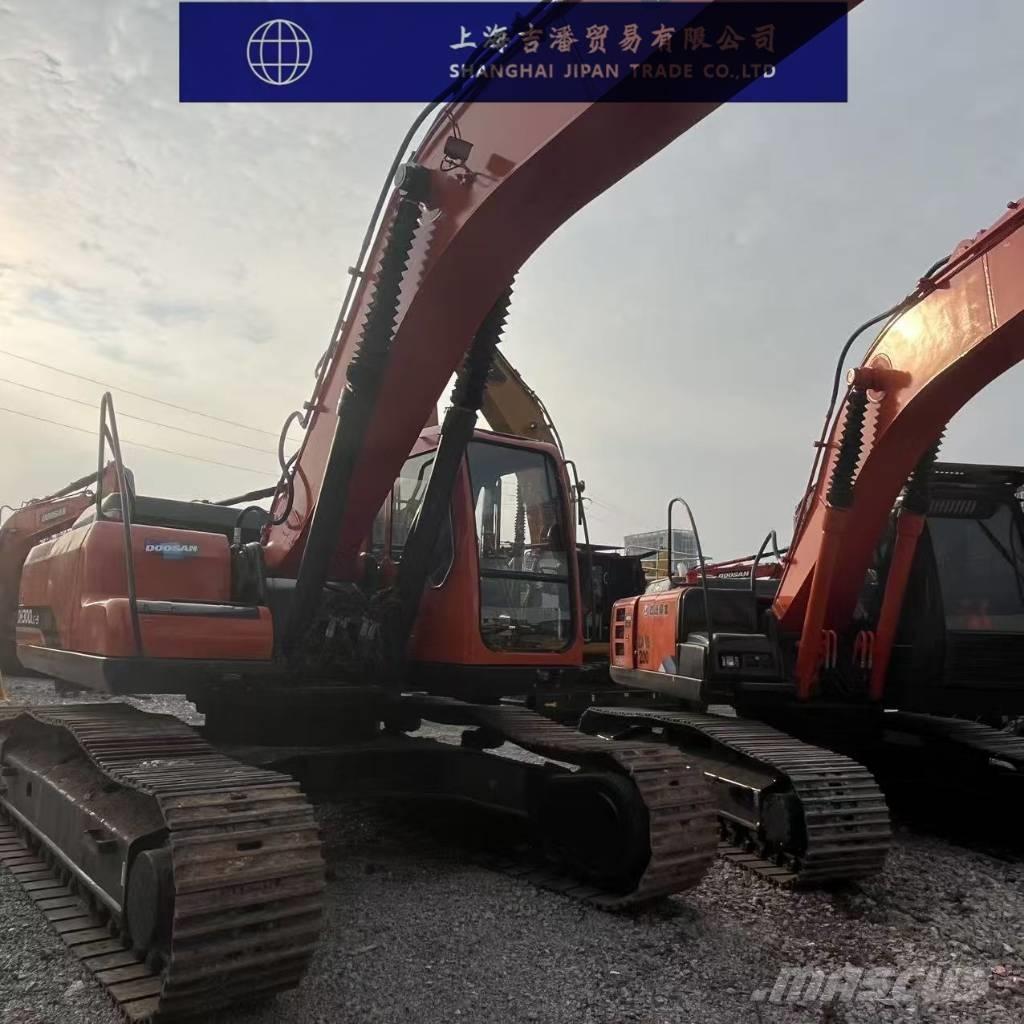

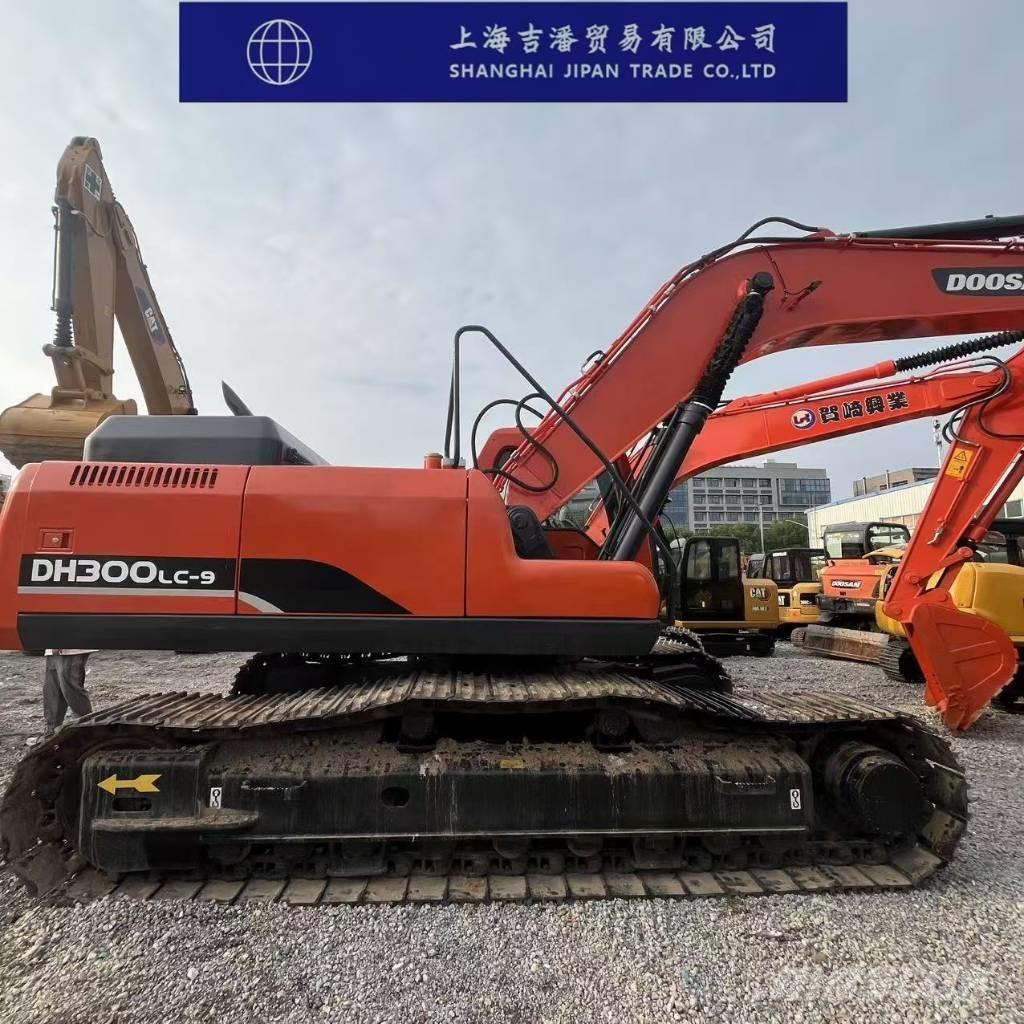

Doosan DH 300

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Diwanlun DH300LC-7 excavator parameter configuration specification The working weight of the whole machine (kg) is 29600 Bucket capacity (m³) 1.27 Boom length (mm) 6245/10000 Stick length (mm) 2500/3750/3100/7000 Place of origin: Yantai, China Tonnage (tons) 30 Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Rotational speed (rpm) 10.1 Rotational torque (Nm) 92 Travel speed (km/h) 5.0 / 3.1 Grounding specific voltage (Kpa) 56 Bucket digging force (kN) 188/199.9 Stick digging force (kN) 127.5 / 135.3 dynamical system Engine model DE08TIS Rated power (kw/rpm) 147 (200) / 1900 Displacement (L) 8.07 Number of cylinders (pcs) 6 Bore × stroke (mm) 111×139 Working form 4-stroke, water-cooled, direct injection Hydraulic system Main pump type variable axial column race pump Main overflow set pressure (Mpa) standard 27.9/boost 34.3 The maximum flow rate of the main pump (l/min) is 2×246 Traveling Hydraulic Circuit (Mpa) 32.5 Slewing hydraulic circuit (Mpa) 27.9 Pilot pump flow rate (L/min) 28. 5 Oil capacity Fuel tank (L) 450 Hydraulic Tank (L) 290 Body size Total length of transport (mm) 10620 Total Transport Width (mm) 3200 Total Transport Height (mm) 3365 (to the top of the boom) Cab total height (mm) 3255 Boarding width (mm) 2960 Counterweight ground clearance (mm) 1175 Track grounding length (mm) 4010 Total track length (mm) 4930 Track shoe width (mm) 600 Total track width (mm) 3200 Track gauge (mm) 2600 Minimum ground clearance (mm) 500 Rear end turning radius (mm) 3200 Scope of work Maximum digging radius (mm) 10705 The maximum excavation radius of the shutdown surface (mm) is 9950/11105/10540/17320 Maximum digging depth (mm) 7190 Maximum digging height (mm) 10495 Maximum unloading height (mm) 7470 Maximum vertical digging depth (mm) 6220 Maximum effective digging depth (mm) 6505/7810/7150/13680
